PISTON KIT GM SPEEDWAY 92.00, WOSSNER 8811D200C

SPEEDWAY
ALL,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9841_200 (phoenixmotos.com)
GM SPEEDWAYcc,

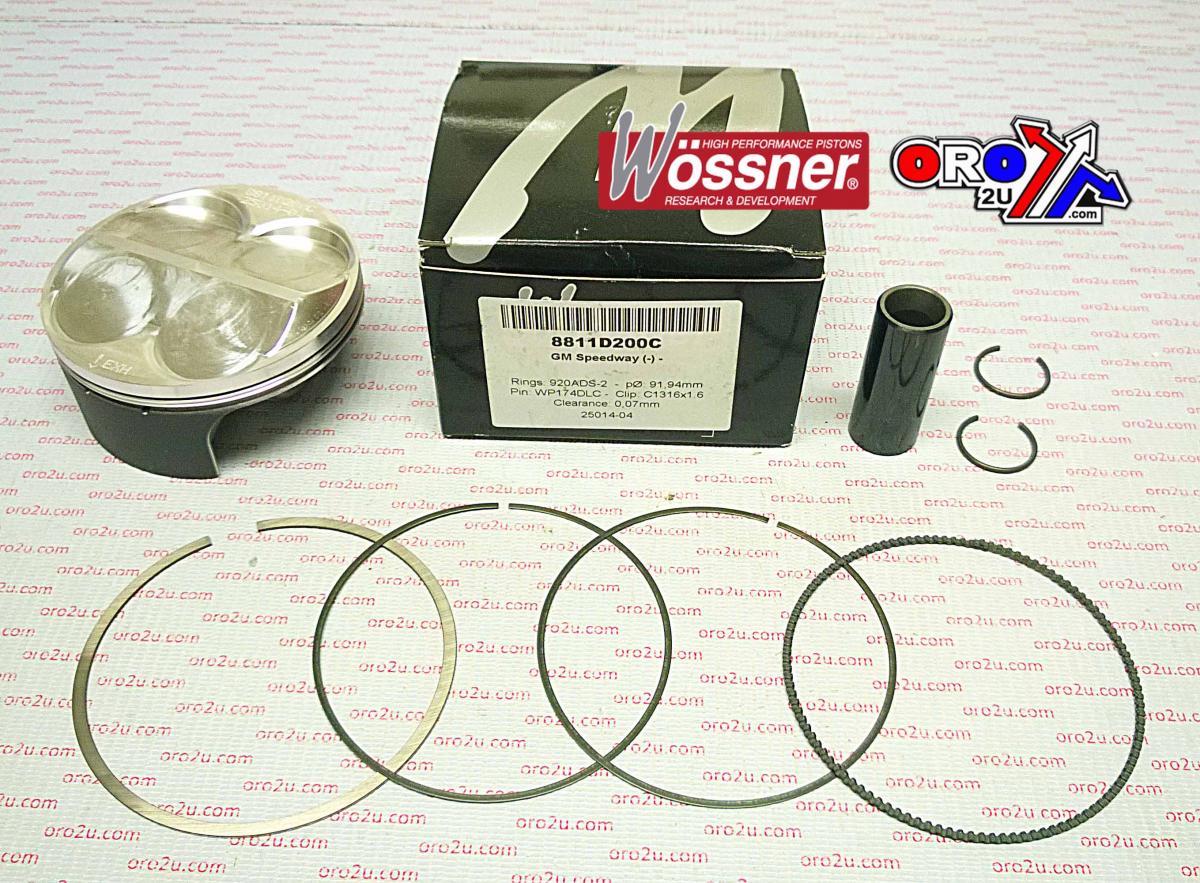

WOSSNER PISTON KIT 8811D200C 92.00mm BORE [91.94]. Compression Height 22mm.
Cross reference numbers ONLY.
Pin P/N WP174,
Ring Set P/N 920ADS-2,

Display (cm3) 499
Hub stroke (mm) 78.50
Clearance (mm) 0.08
Wossner compression Ratio:
OEM Compression ratio:
Dome volume (cm3) +5.60
Compression height (mm) 22.00
Theorectical weight (G)
