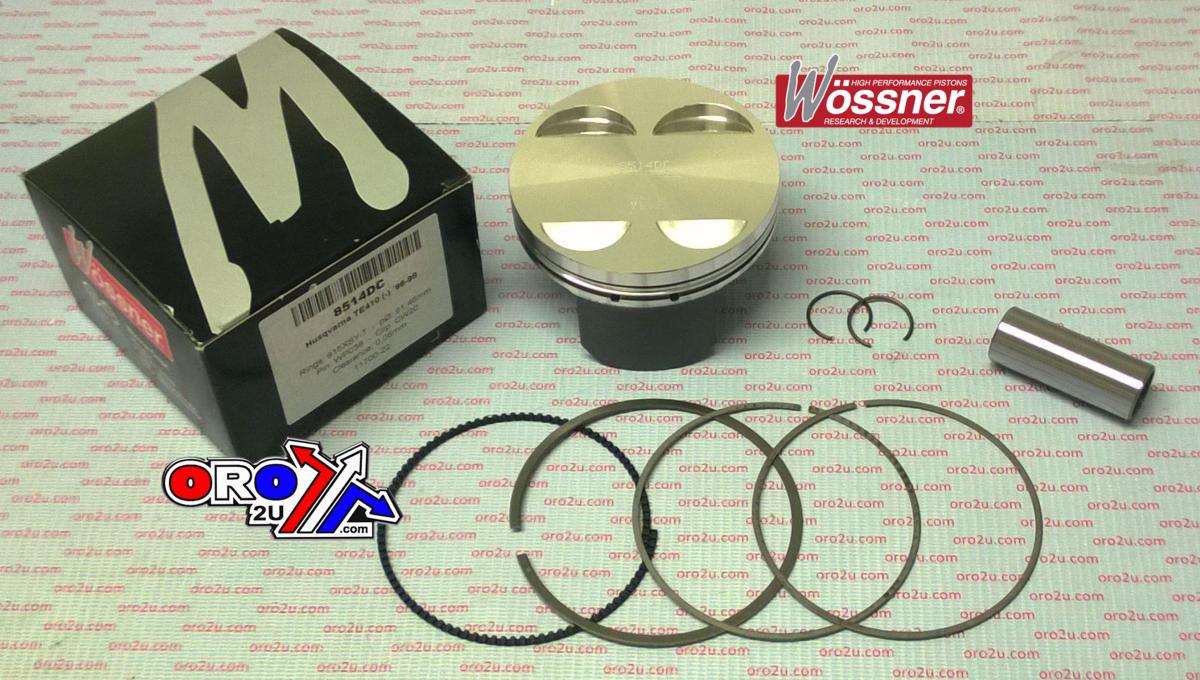

PISTON KIT C 96-98 TE410 91.50, WOSSNER 8514DC HUSQVARNA

Piston Kit 91.52mm Bore 91.46 Wossner 8514DC (+0.02)

Husqvarana
TE 410 1996 -1998,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W101.C (oro2u.com)
Wossner Piston Husqvarna TE410 91.52 mm Bore (PN# 8514DC)
Lock P/N CW20
Pin P/N WP038
Ring Set P/N 915XSY

Display (cm3) 399
Hub stroke (mm) 60.80
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 11.40:1
Dome volume (cm3) -2.50
Compression height (mm) 29.50
Theorectical weight (G)
