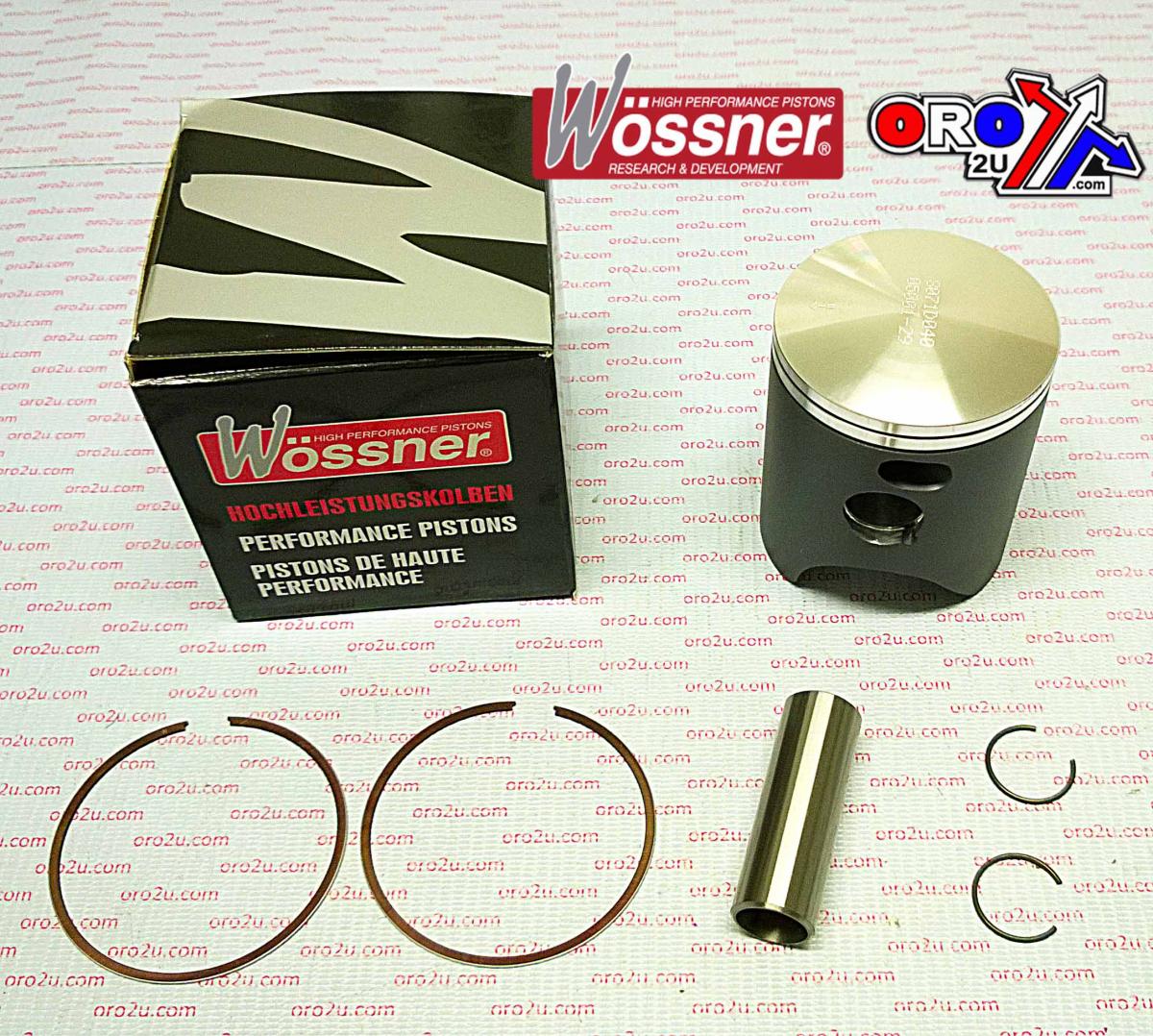

PISTON KIT ALL CRM250 66.00 A, FORGED WOSSNER 8071DA

Piston Kit 66.00mm Bore 65.93 Wossner 8071DA (STD)

HONDA
CRM 250 1989 -2000,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

PART NO. 56-W130+00A.WO (oro2u.com)
Wossner Piston Honda CRM250 66 mm Bore (PN# 8071DA)
Lock P/N CW19
Pin P/N WP044
Ring Set P/N RSB6600 X 2

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 33.00
Theorectical weight (G)
