Wiseco Pro-Lite Piston Kit 68.50 mm for Yamaha YZ250 1999–2024 804M06850

Wiseco 804M06850 is a piston kit for a 68.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 804M06850
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 68.50 MM
• Piston Diameter: 68.46 MM
• Piston Oversize: 2.10 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2697CD, Piston pin #S508, Circlip #CW18.

Cylinder preparation

Wiseco specifies: Bore / Replate.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

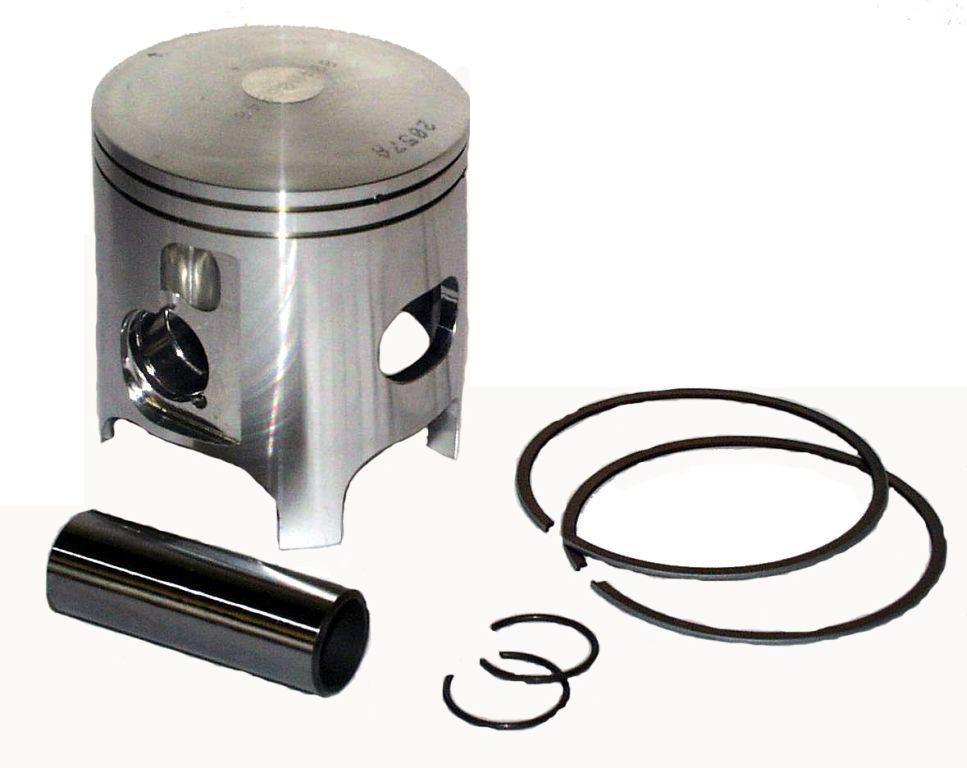

Manufacturer photograph for this reference. Packaging presentation may change.
