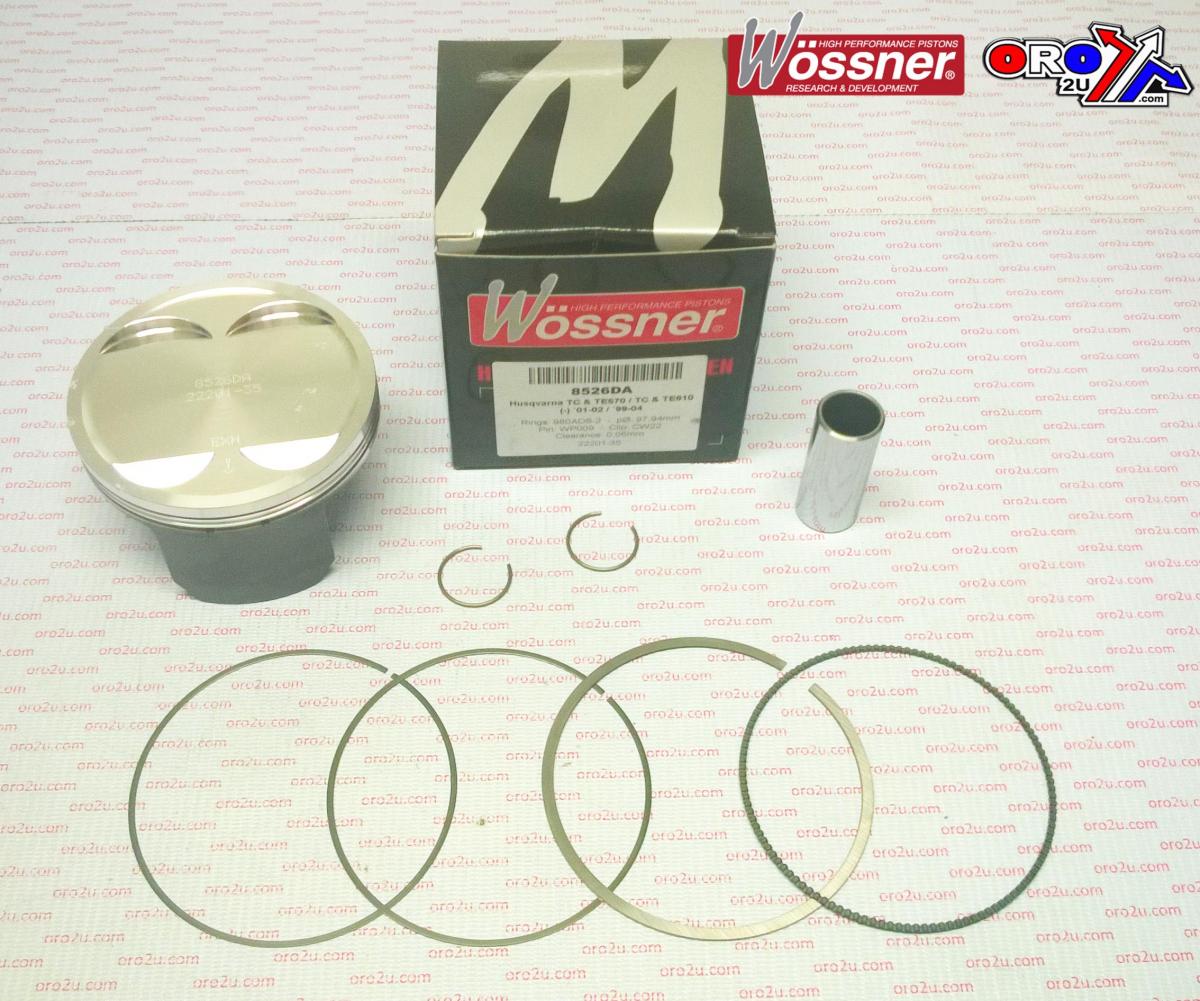

PISTON KIT 99-04 610 100.00, WOSSNER 8526D200 HUSQVARNA

Piston kit 100mm Bore 99.94 Wossner 8526D200 (+2.00)

HUSQVARNA
TC 610 2001 - 2002,
TE 570 2001 - 2002,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

PART NO. 56-W116_2.00 (oro2u.com)
Wossner Piston Husqvarna TC570 100 mm Bore (PN# 8526D200)
Lock P/N CW22
Pin P/N WP009
Ring Set P/N 1000ADS-2

Display (cm3) 577
Hub stroke (mm) 76.40
Clearance (mm) 0.06
Wossner compression Ratio: OEM
OEM Compression ratio: 10.00:1
Dome volume (cm3) -5.40
Compression height (mm) 25.00
Theorectical weight (G)
