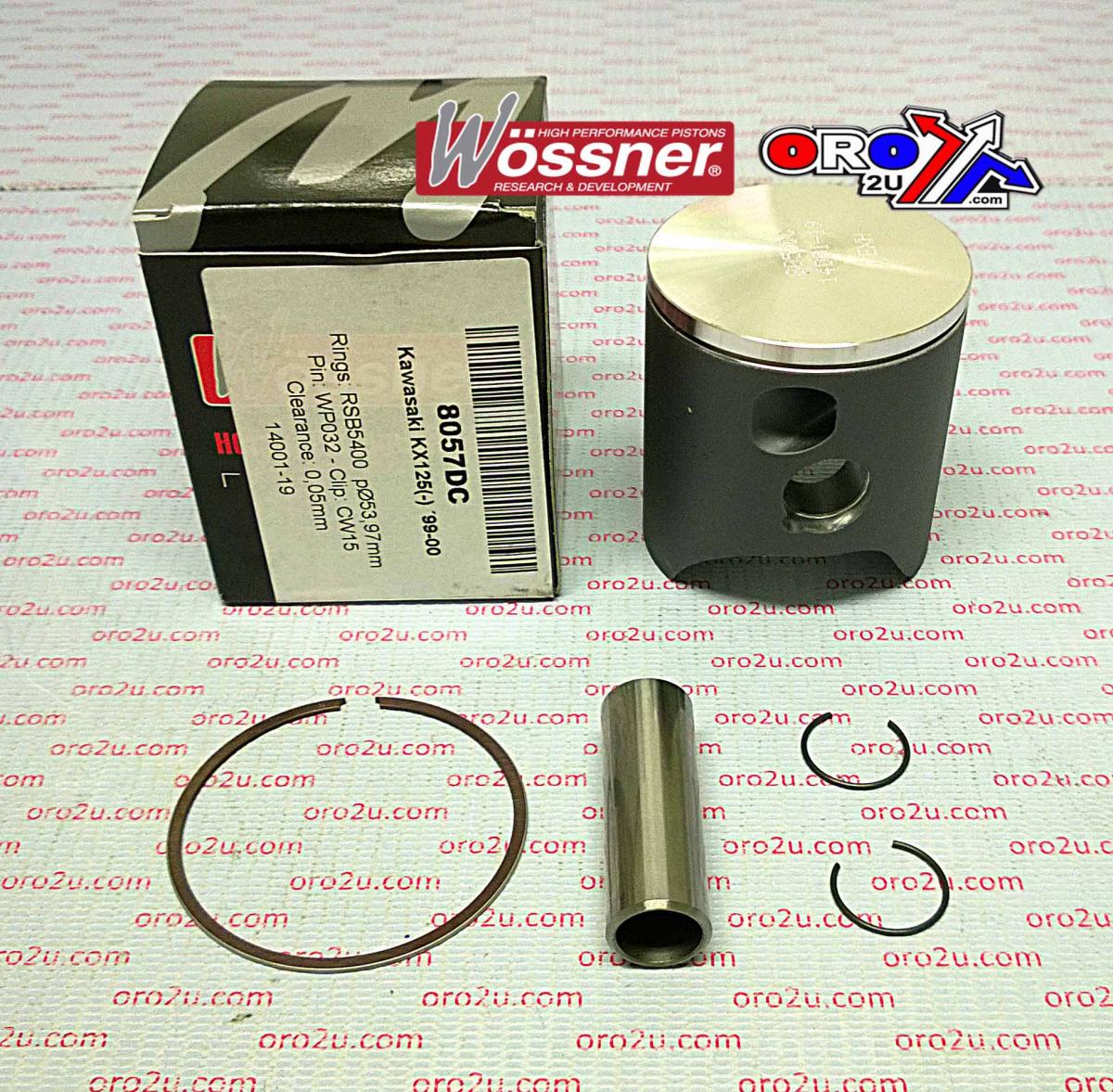

PISTON KIT 99-00 KX125 54.00 A, WOSSNER 8057DA KAWASAKI 13001-1524

Kawasaki
KX125 1999 - 2000,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W741+00A.WO (phoenixmotos.com)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400
Rod P/N P2034

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.30
Theorectical weight (G)

Cross reference numbers ONLY.
13001-1524, 741M05400
