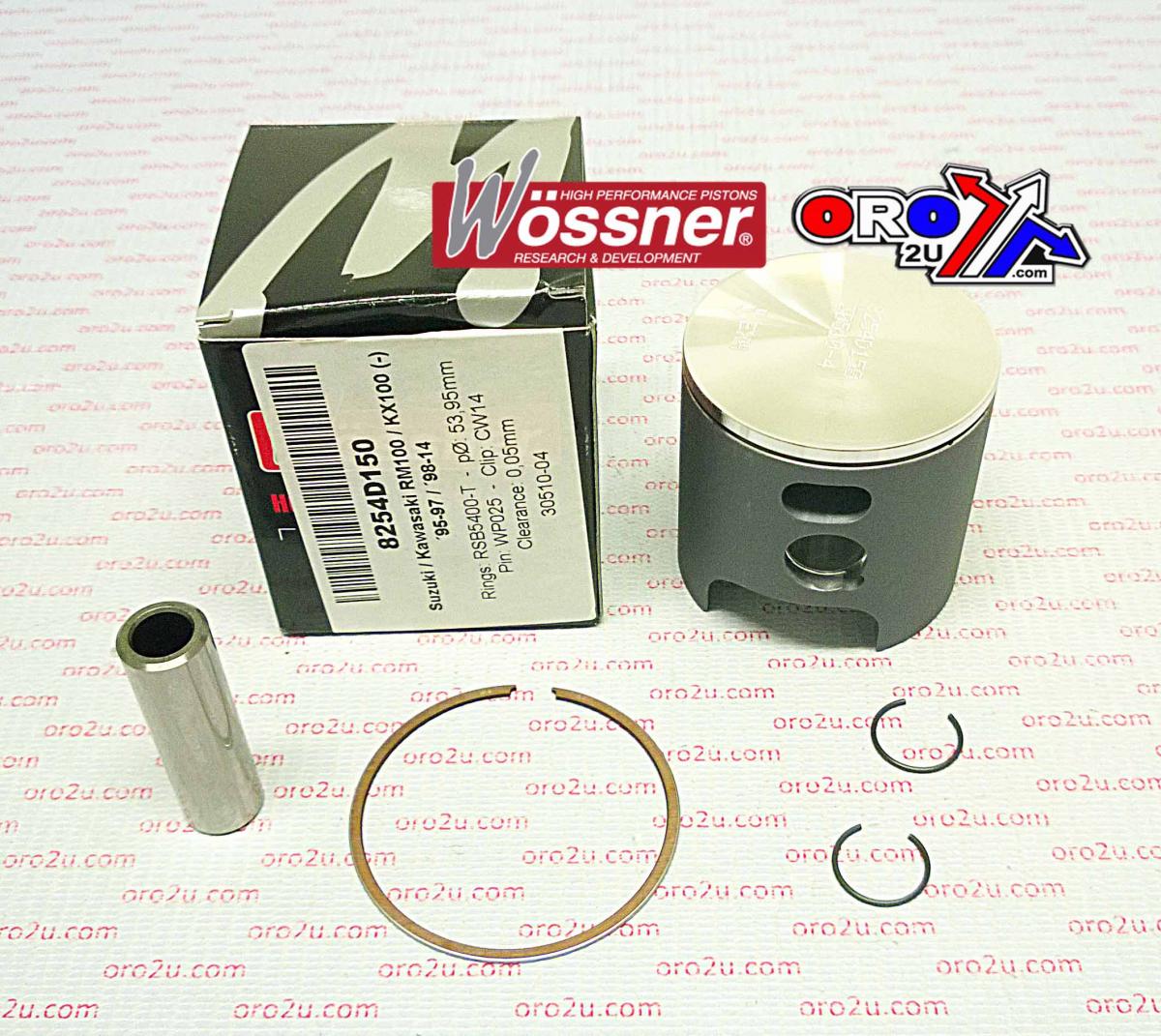

PISTON KIT 98-18 KX100 54.00, WOSSNER 8254D150 KAWASAKI MX, SINGLE RING

KAWASAKI
KX100 1995 - 2018,
SUZUKI
RM100 2003,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W651.150.WO (phoenixmotos.com)
Kawasaki KX100, Suzuki RM100,Wossner Piston O/S +1.50mm 54.00mm Bore 8254D150
Lock P/N CW14
Pin P/N WP025
Ring Set P/N RSB5400
Rod P/N P2005

Display (cm3) 100
Hub stroke (mm) 45.80
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 26.00
Theorectical weight (G)
