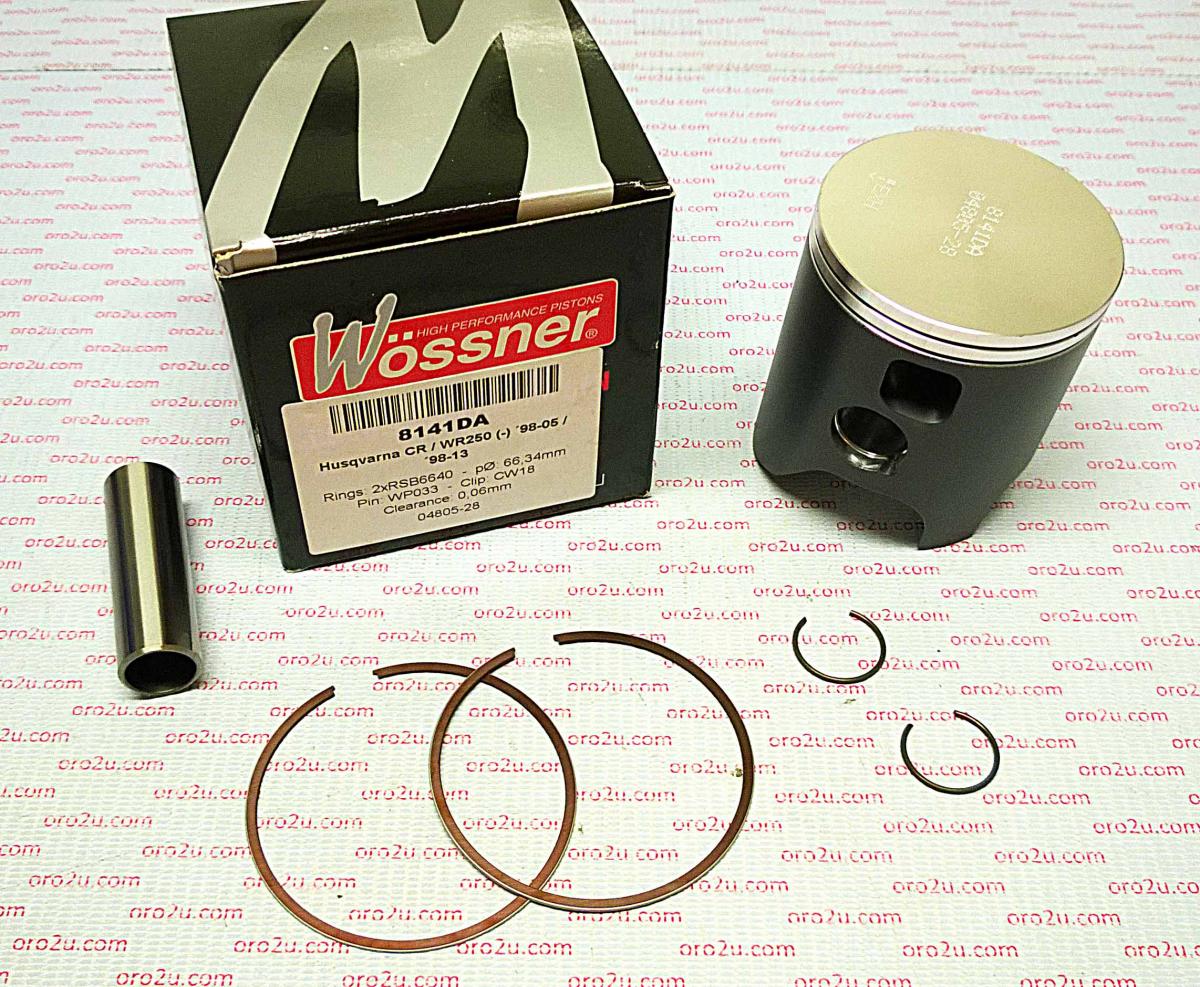

PISTON KIT 98-12 CR250 WR250, WOSSNER KIT 8141DC HUSQVARNA

Piston kit 64.00mm Bore 66.36 Wossner 8141DC (+0.02)

HUSQVARNA
CR 250 1998-2005 ,
WR 250 1998-2009,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No 56-W086.C.WO (oro2u.com)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640 x 2

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 38.00
Theorectical weight (G)
