Wiseco Pro-Lite Piston Kit 45.00 mm for KTM 65 SX 2000–2008 746M04500

Wiseco 746M04500 is a piston kit for a 45.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 746M04500
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 45.00 MM
• Piston Diameter: 44.95 MM
• Piston Oversize: STD
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #1772CS, Piston pin #S595, Circlip #CW12.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

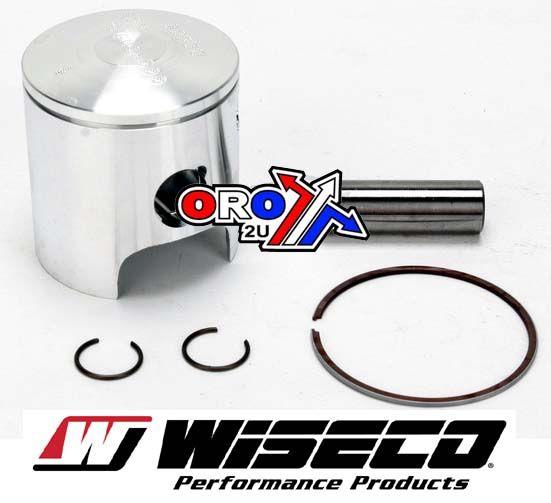

Manufacturer photograph for this reference. Packaging presentation may change.
