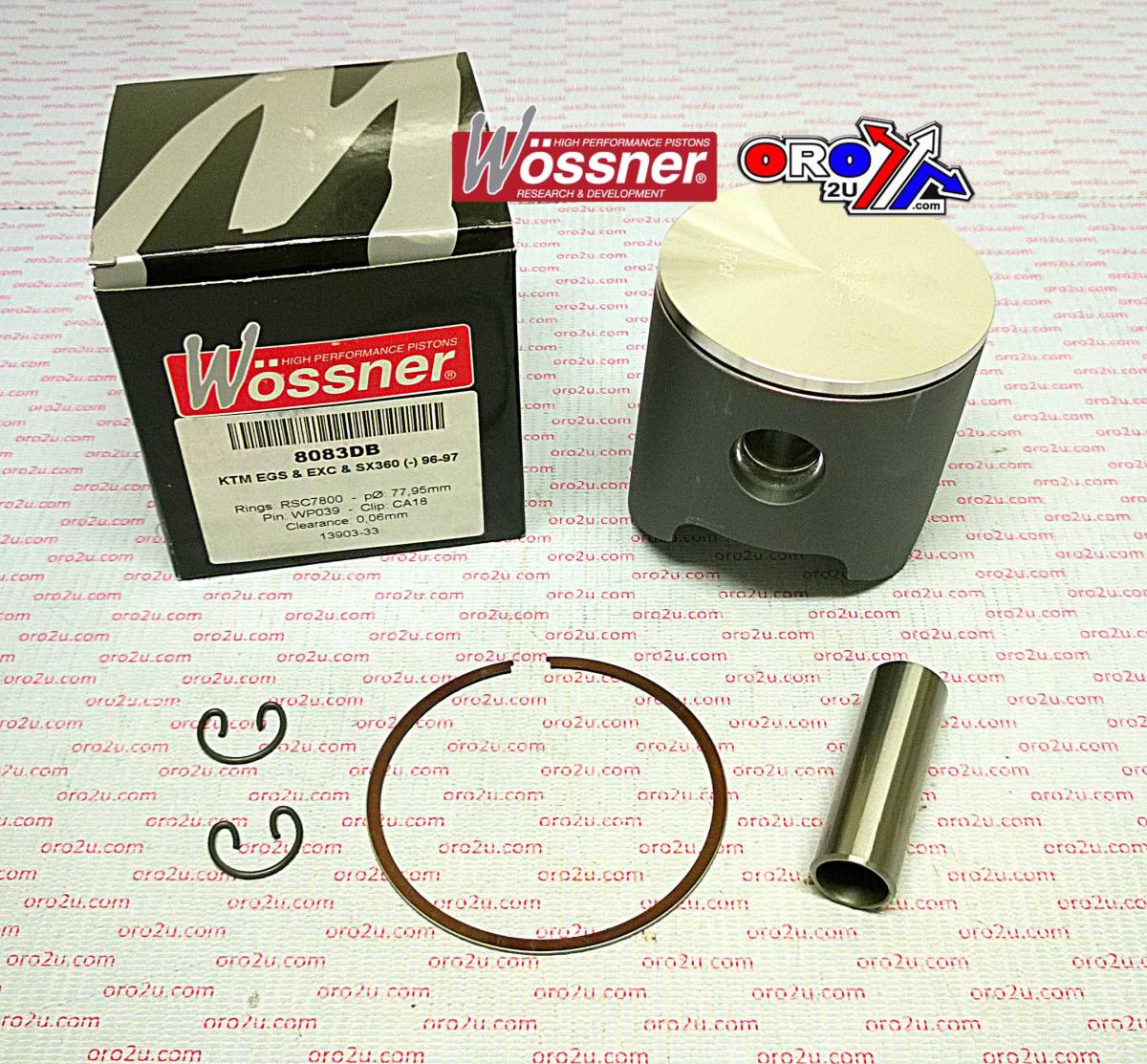

PISTON KIT 96-97 KTM360 78.00, WOSSNER 8083DB FORGED

Piston kit 78.01mm Bore 77.95 Wossner 8083DB (+0.01)

KTM
EGS 1996 - 1997,
EXC 1996 - 1997,
SX360 1996 - 1997,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W747+00B.WO (oro2u.com)
Wossner Piston KTM EGS360 78 mm Bore (PN# 8083DB)
KTM360 EGS/ECX/SX 96-97
Lock P/N CW18
Pin P/N WP039
Ring Set P/N RSC7800

Display (cm3) 353
Hub stroke (mm) 74.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 27.00
Theorectical weight (G)
