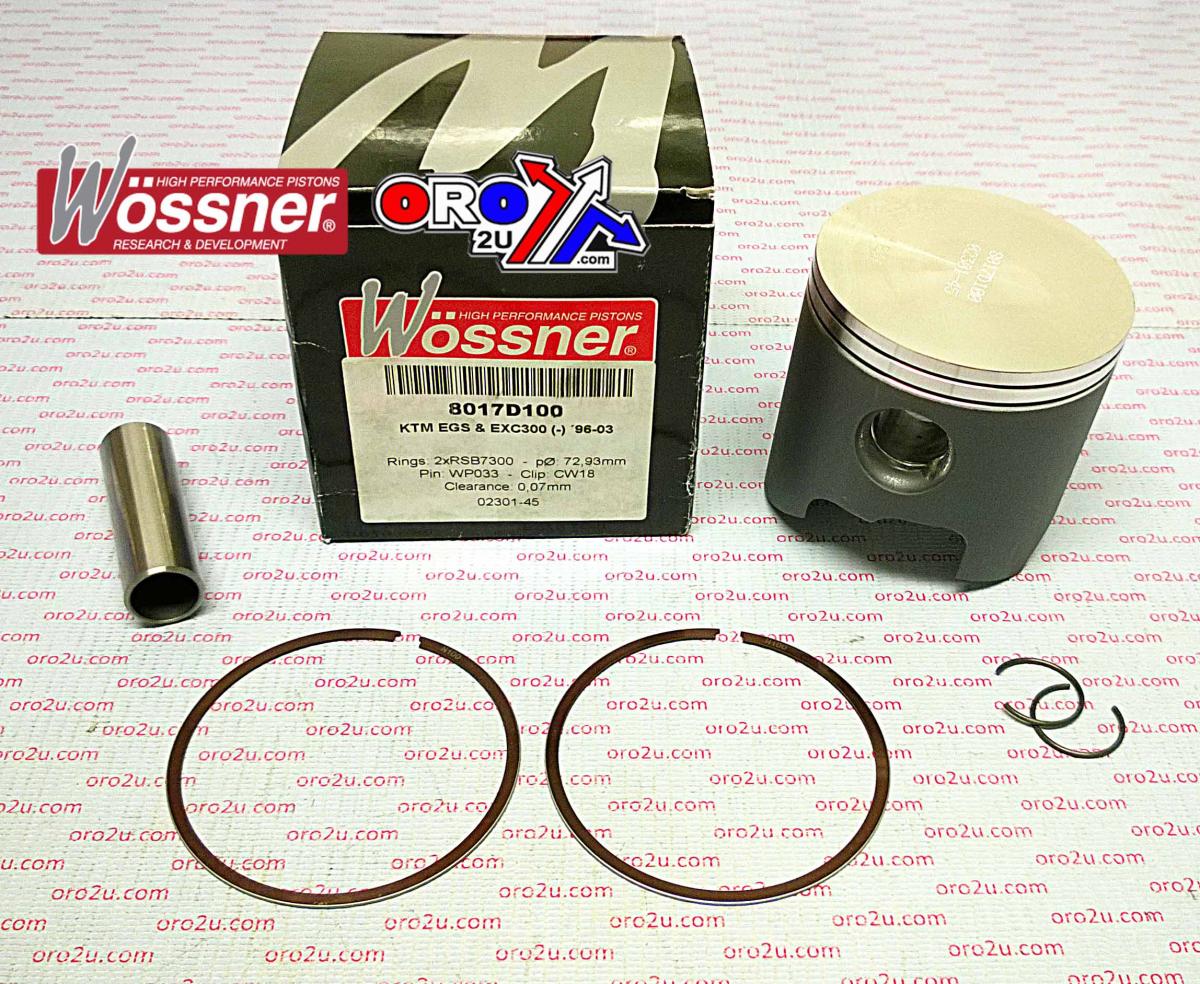

PISTON KIT 96-03 KTM300 72.00, WOSSNER 8017DC FORGED

KTM
EGS300 1996 - 2003,
EXC300 1996 - 2003,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W712+00C.WO (phoenixmotos.com)
Wossner Piston KTM EGS300 72.02 mm Bore (PN# 8017DC)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB7200 X 2
Rod P/N P2024

Display (cm3) 297
Hub stroke (mm) 72.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 26.70
Theorectical weight (G)
