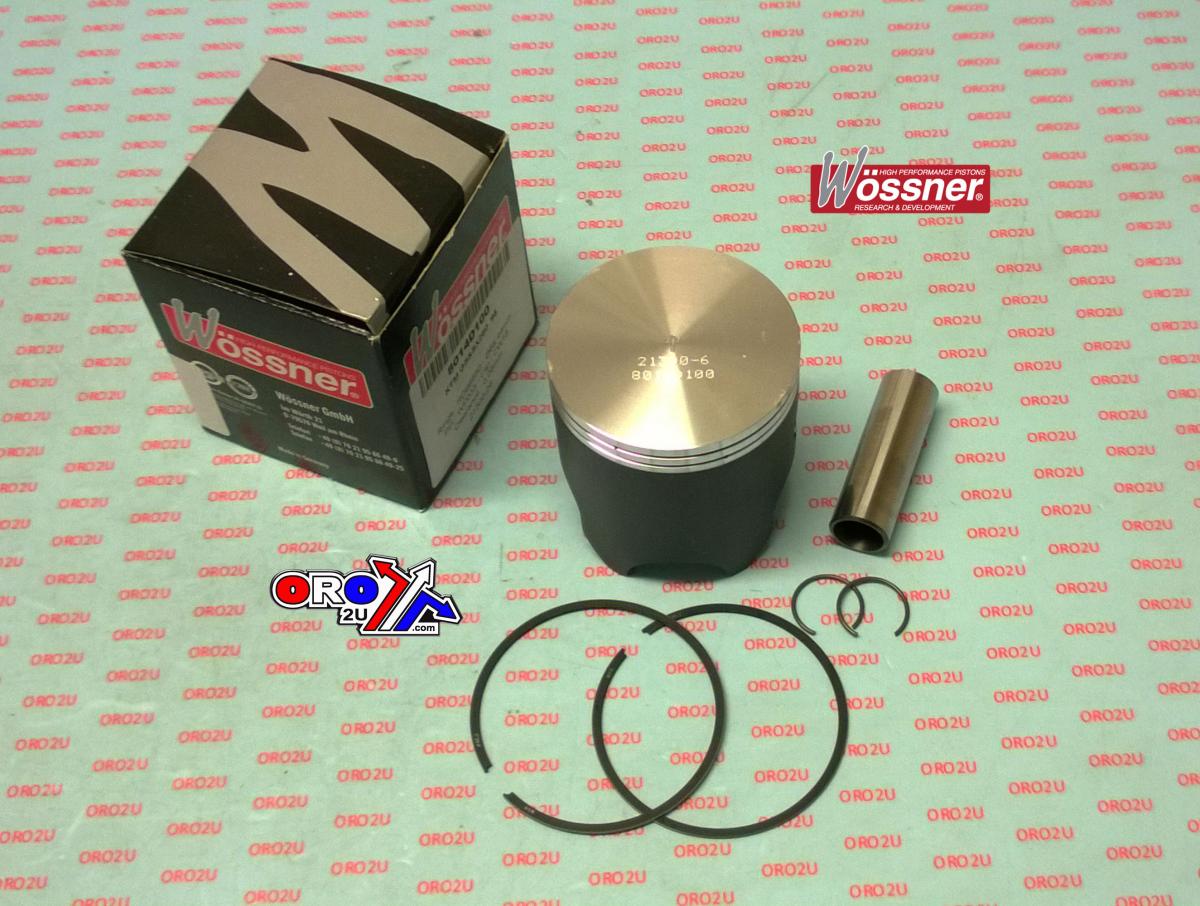

PISTON KIT 95 KTM250SX 67.50, WOSSNER 8014DA FORGED MX

KTM
SX250 1995,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W655+00A.WO (phoenixmotos.com)
Wossner Piston KTM GS250 67.5 mm Bore (PN# 8014DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6750 X 2

Display (cm3) 249
Hub stroke (mm) 69.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.70
Theorectical weight (G)

1995 KTM GS 250, 1995 KTM SX 250
