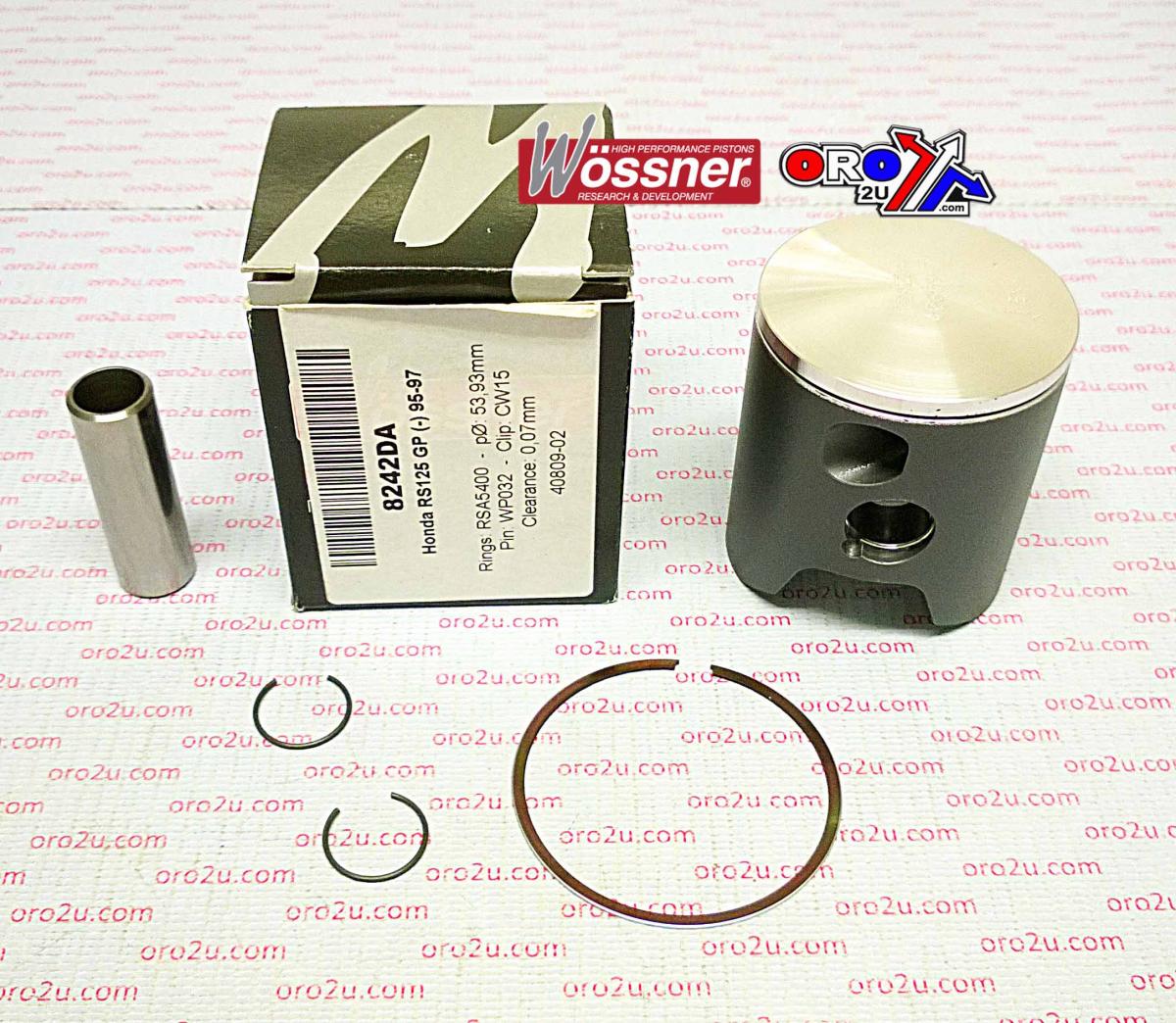

PISTON KIT 95-97 RS125 GP 54.0, FORGED WOSSNER 8242DA

HONDA
RS125 GP 1995 - 1997,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W9723.A.WO (phoenixmotos.com) Wossner Piston Honda RS125 53.93 mm (PN# 8242DA)
- 1995 Honda RS 125 GP
- 1996 Honda RS 125 GP
- 1997 Honda RS 125 GP
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSA5400

Display (cm3) 124
Hub stroke (mm) 54.50
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 29.00
Theorectical weight (G)
