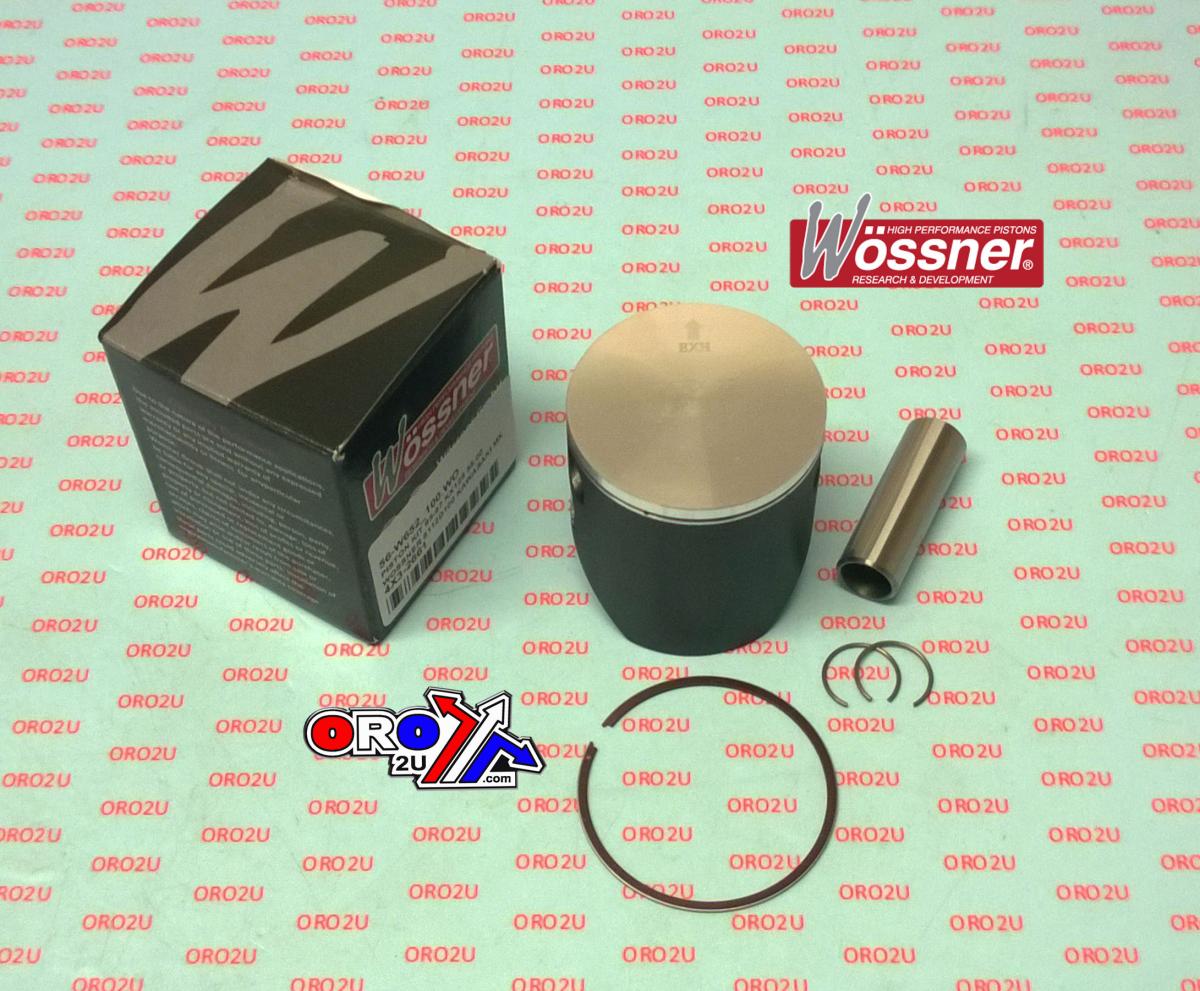

PISTON KIT 95-97 KX125 54.00 A, WOSSNER 8112DA KAWASAKI MX 13001-1429

KAWASAKI
KX125 1995 - 1997,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W652.A.WO (phoenixmotos.com)
Wossner Piston Kawasaki KX125 54 mm Bore (PN# 8112DA)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400
Rod P/N 2038

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G)

Cross reference numbers ONLY.
13001-1429, 652M05400

1996 Kawasaki KX 125 1997 Kawasaki KX 125
