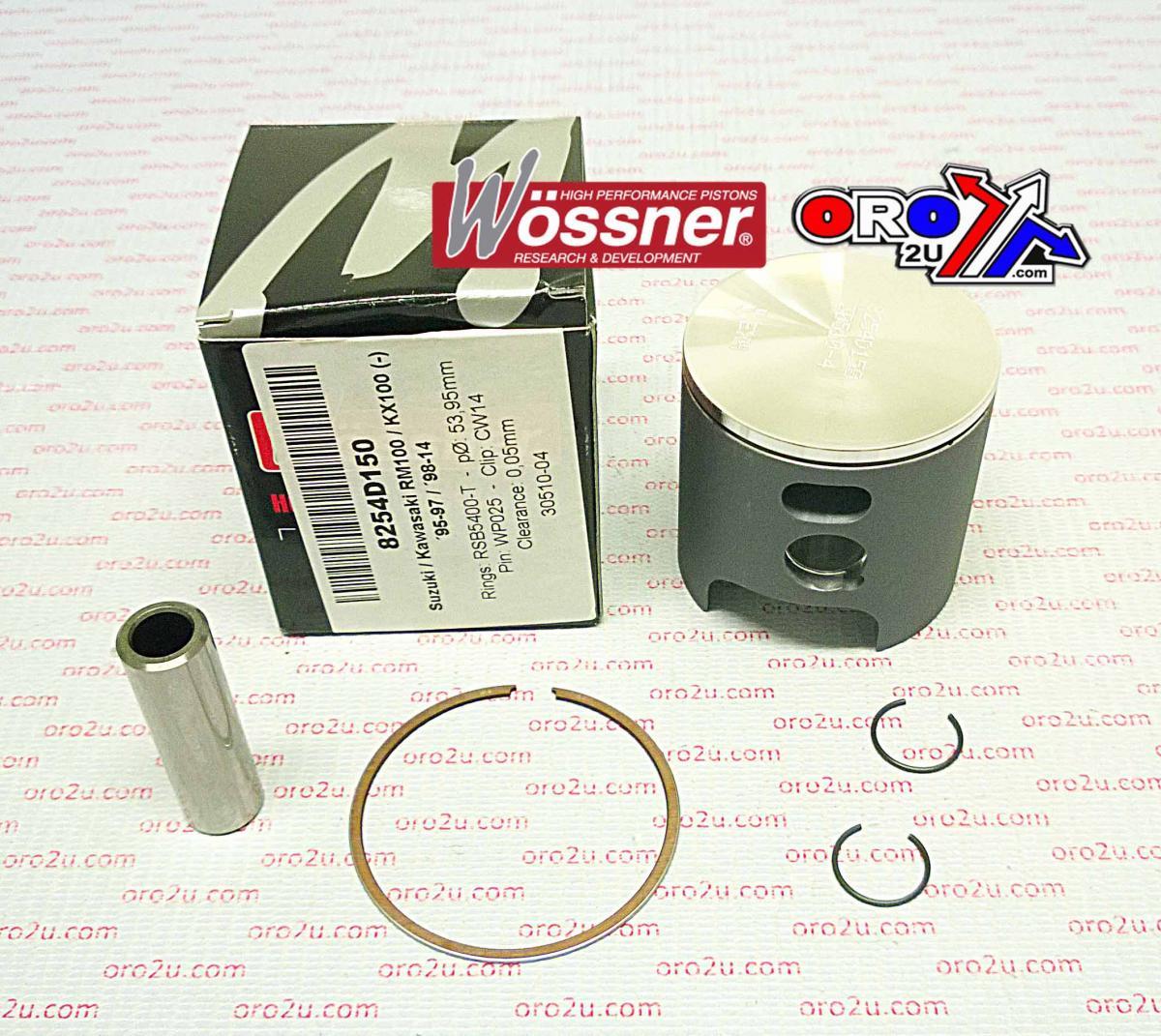

PISTON KIT 95-20 KX100 1-RING, WOSSNER 8254DA KAWASAKI MX 13001-0123, K1300-10123

KAWASAKI
KX100 1995 - 2020,
SUZUKI
RM100 2003,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W651.A.WO (phoenixmotos.com)
Wossner Piston Kawasaki KX100, Suzuki RM100 52.5 mm Bore (PN# 8254DA)
Lock P/N CW14
Pin P/N WP025
Ring Set P/N RSB5250
Rod P/N P2005

Display (cm3) 100
Hub stroke (mm) 45.80
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 26.00
Theorectical weight (G)

Cross reference numbers ONLY.
13001-0123, 09104898, 651M05250, K1300-10123

Cross reference numbers ONLY.
PISTON-ENGINE 13001-0759,
RING-PISTON TOP 13003-1274,
PIN-PISTON 13002-1018,
RING-SNAP 92033-0005,
