Wiseco Forged Piston Kit 83.00 mm 10.25:1 CR for Yamaha YFM350 Warrior 1987–2004 4419M08300

Wiseco Forged Piston Kit 83.00 mm 10.25:1 CR for Yamaha YFM350 Warrior 1987–2004 4419M08300

£175.87 GBP
£175.87 GBP
Sale Sold out
Taxes included.

Wiseco 4419M08300 is a piston kit for a 83.00 mm bore.

Wiseco catalogue applications

Make Model Years
Yamaha YFM350 Warrior 1987–2004
Yamaha YFM350 Grizzly 2007–2014
Yamaha YFM350 R Raptor 2005–2013
Yamaha YFM350 WT Big Bear 1989–1999
Yamaha BW350 T 1999
Yamaha Moto-4 1999

Specifications

  • Manufacturer part number: 4419M08300
  • Product Series: 4 Stroke Forged Series
  • Bore Diameter: 83.00 MM
  • Piston Diameter: 82.95 MM
  • Piston Oversize: STD
  • Piston Material: 2618
  • Skirt Coating: Yes
  • Compression Ratio Actual: 10.25:1

Included components

Piston #304382, Ring Set #3268XC, Piston pin #S376, Circlip #CW19.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

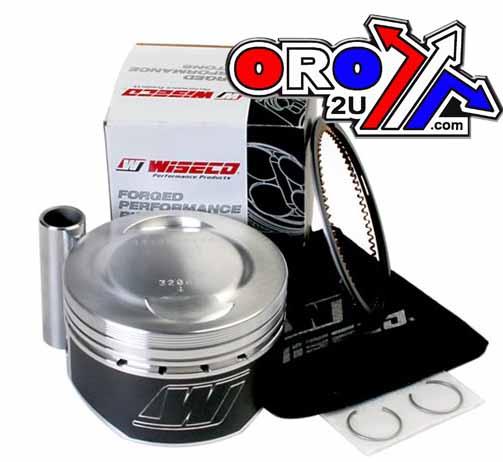

Manufacturer photograph for this reference. Packaging presentation may change.
