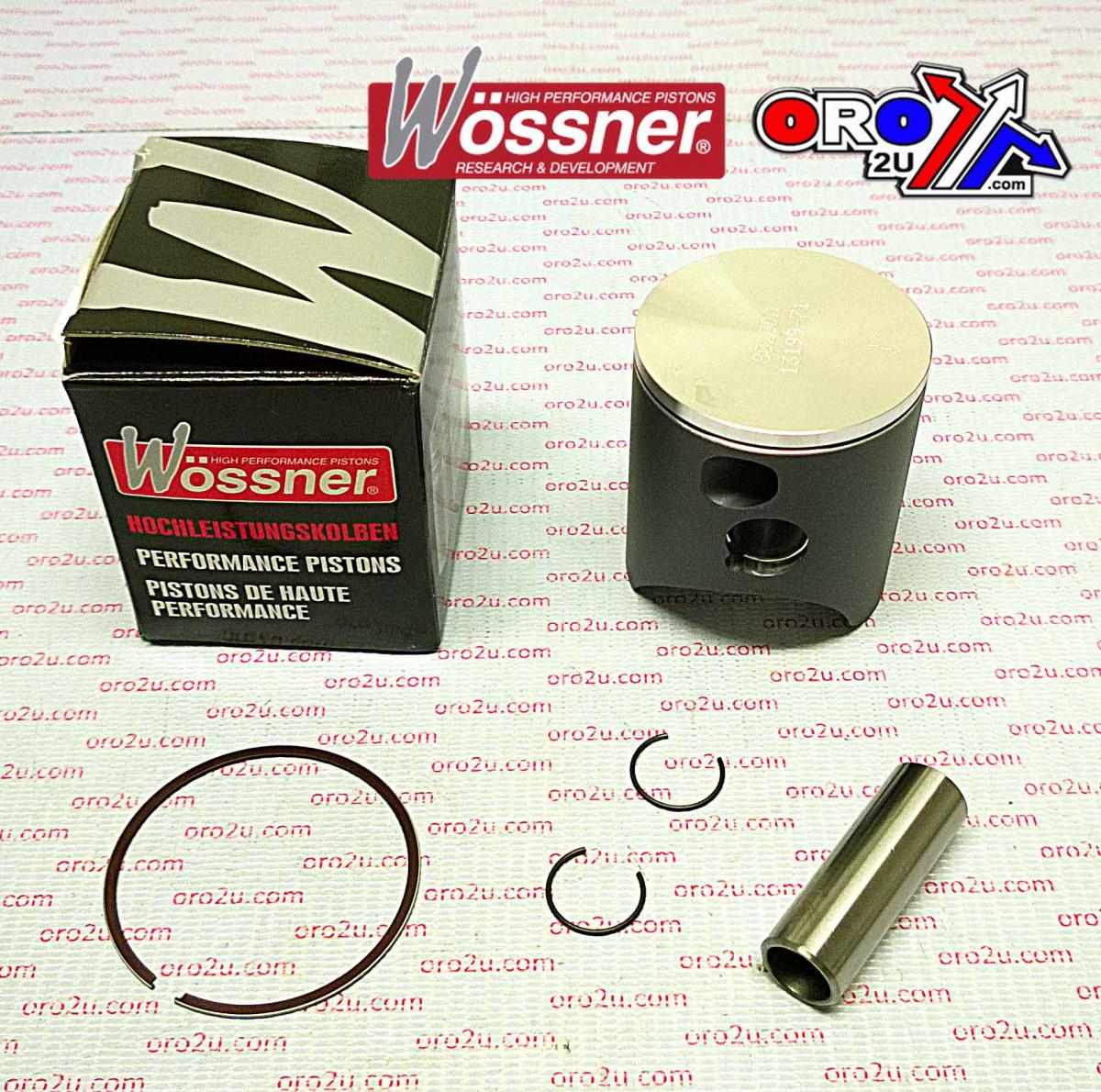

PISTON KIT 92-99 CR125 54.50, WOSSNER 8020D050,8089D050

Piston kit 54.50mm Bore 54.45 Wossner 8020D050 (+0.50)

HONDA
CR125 1992 - 1999,
HUSQVARANA
CR 125 / WR 125 / SM 125 / SMS 125 / WRE 125 1997 - 2013,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W613_050.WO (oro2u.com)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5450
Rod P/N P2009

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)

1992 Honda CR 125 1993 Honda CR 125 1994 Honda CR 125 1995 Honda CR 125 1996 Honda CR 125 1997 Honda CR 125 1998 Honda CR 125 1999 Honda CR 125
