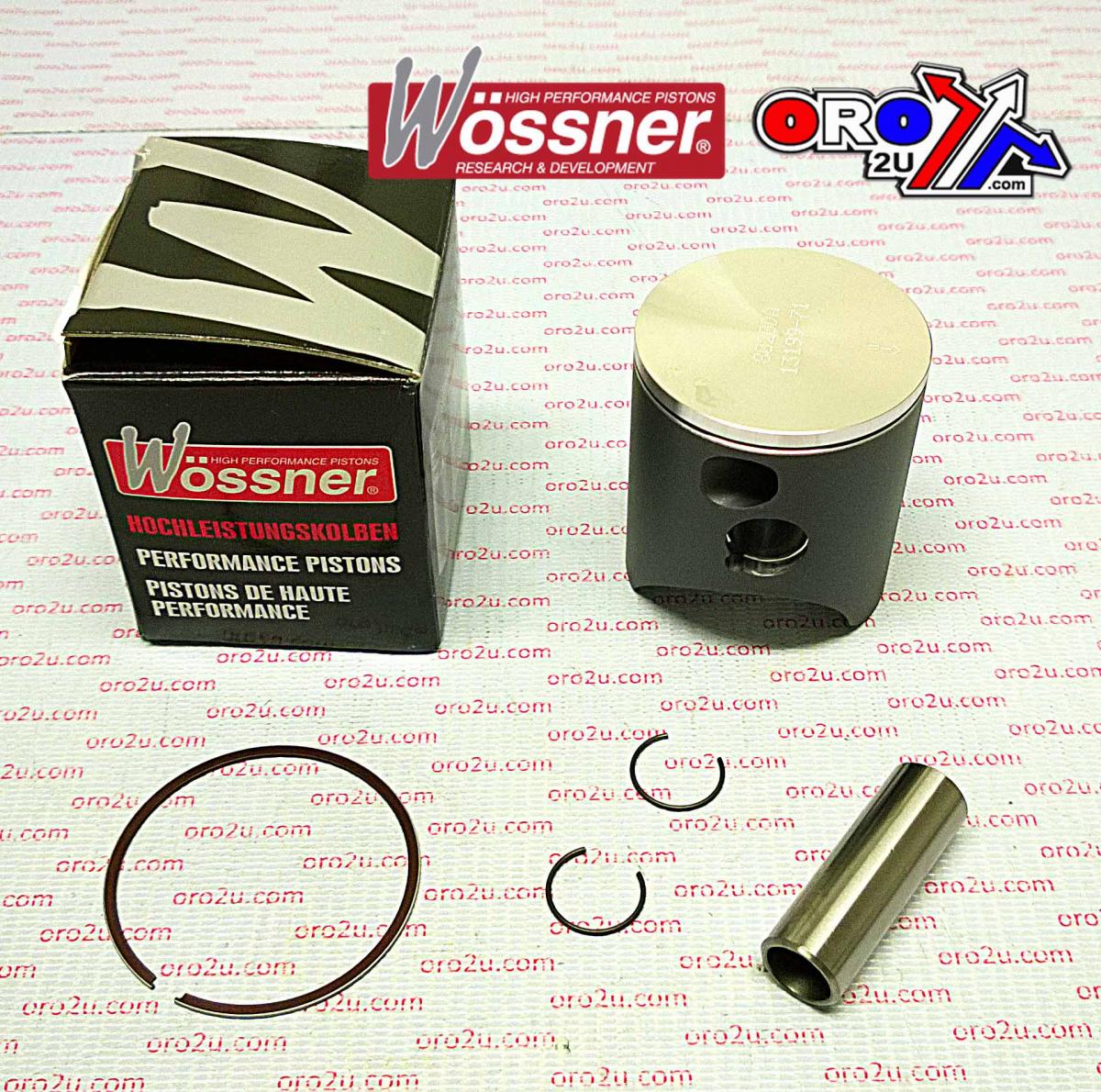

PISTON KIT 92-99 CR125 54.00, WOSSNER 8020DA, 8089DA FORGED

Piston kit 54mm Bore 53.95 Wossner 8020DA (STD)

HONDA
CR125 1992 - 1999,
HUSQVARANA
CR 125 / WR 125 / SM 125 / SMS 125 / WRE 125 1997 - 2013,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W613.A.WO (oro2u.com)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400
Rod P/N P2009

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)

Cross reference numbers ONLY.
13110-KZ4-505, 09104723, 676M05400, 8089DA, 800099749/3, 09104812, 760M05400
