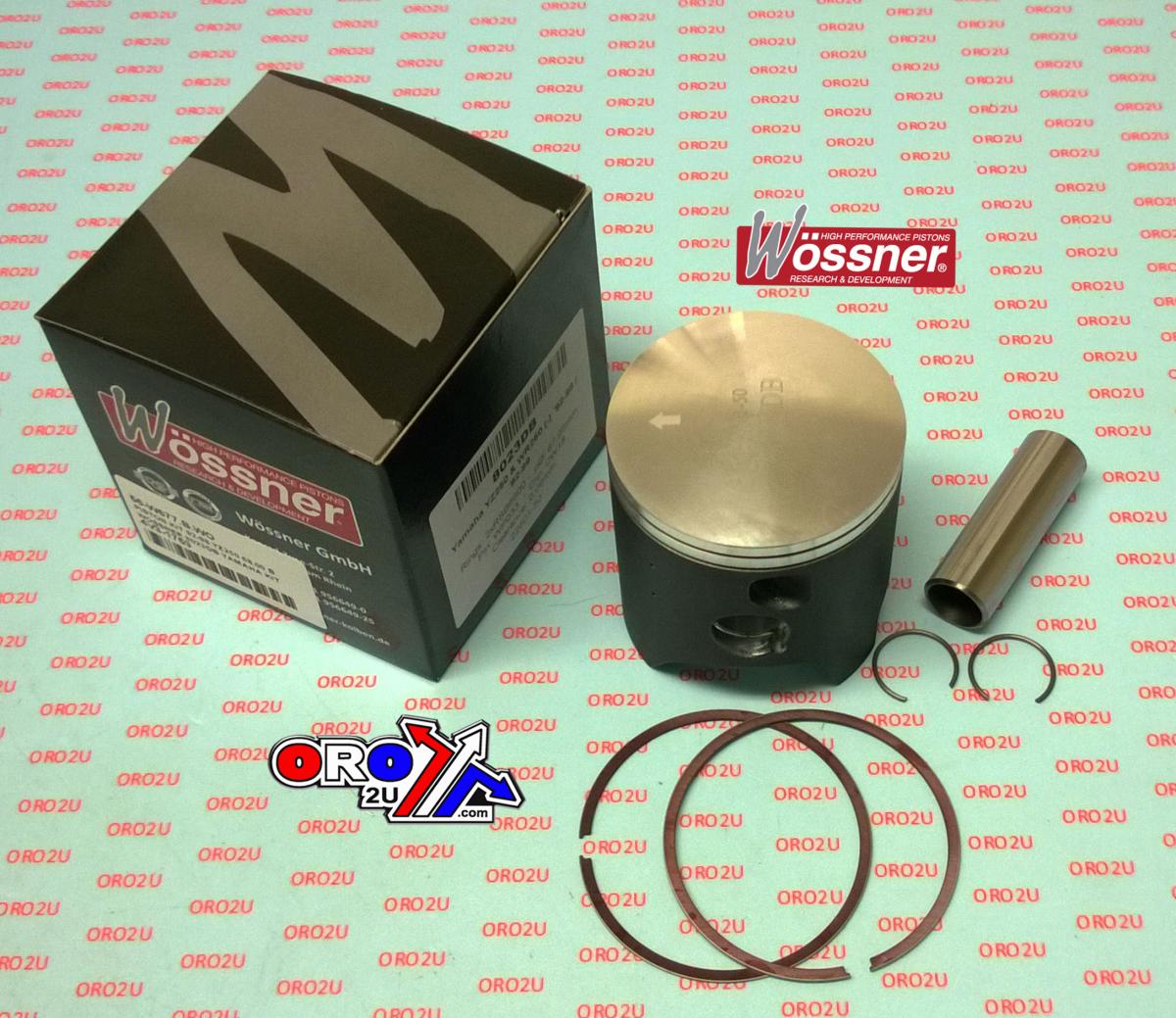

PISTON KIT 92-98 YZ250 68.00 B, WOSSNER 8023DB YAMAHA KIT

Piston kit 68.01mm Bore 67.95 Wossner 8023DB (+0.01)

YAMAHA
YZ250 1992 - 1998,
WR250 1992 - 1999,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Wossner Piston Yamaha YZ250 68.01 mm Bore (PN# 8023DB)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6800 x 2
Rod P/N P2029

Display (cm3) 246
Hub stroke (mm) 68.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 36.00
Theorectical weight (G)
