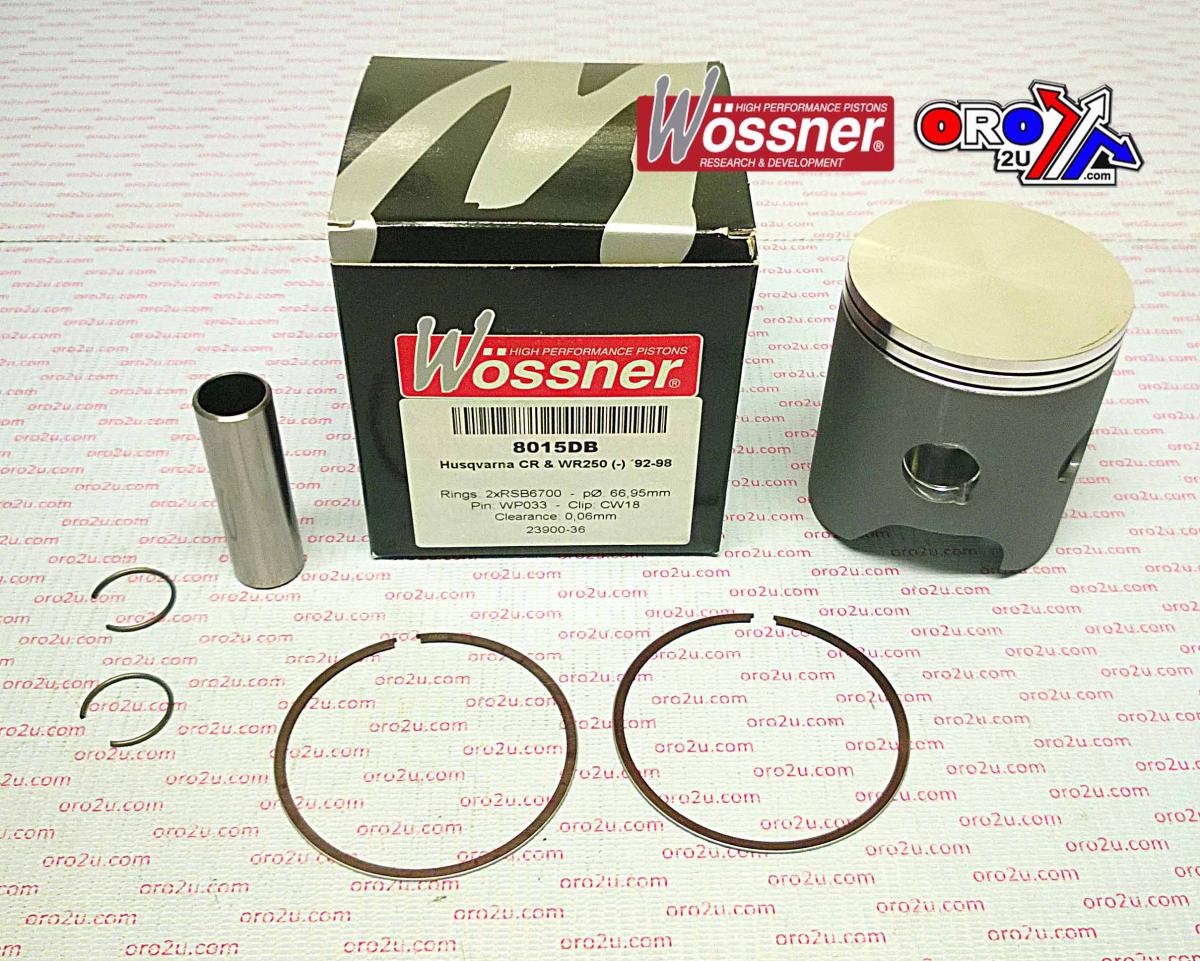

PISTON KIT 92-98 HSV 250 67.00, HUSQVARNA WOSSNER 8015DA

Piston kit 67.00mm Bore 66.94 Wossner 8015DA (STD)

HUSQVARNA
CR250 1992 - 1998,
WR250 1992 - 1998,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W699.A.WO (oro2u.com)
Wossner Piston Husqvarna CR250 67 mm Bore (PN# 8015DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6700 x 2

Display (cm3) 249
Hub stroke (mm) 70.80
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 35.00
Theorectical weight (G)

Cross reference numbers ONLY.
699M06700,

- 1995 Husqvarna CR 250 - 1995 Husqvarna WR 250 - 1996 Husqvarna CR 250 - 1996 Husqvarna WR 250 - 1997 Husqvarna CR 250 - 1997 Husqvarna WR 250 - 1998 Husqvarna CR 250 - 1998 Husqvarna WR 250
