Wiseco Forged Piston Kit 74.00 mm 11:1 CR for Honda TRX300 EX 1992–2008 4574M07400

Wiseco 4574M07400 is a piston kit for a 74.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4574M07400
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 74.00 MM
• Piston Diameter: 73.95 MM
• Piston Oversize: STD
• Piston Material: 2618
• Skirt Coating: No
• Compression Ratio Actual: 11:1

Included components

Ring Set #2913XC, Piston pin #S523, Circlip #CW17.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

Application notes

• Honda TRX300 EX 1992–2008, Honda TRX300 X 2009: 4-valve engine configuration.

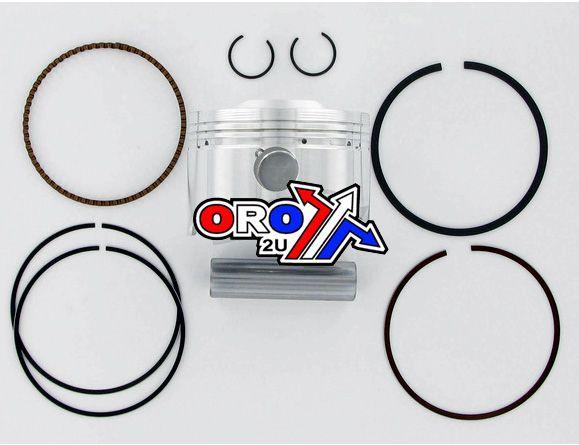

Manufacturer photograph for this reference. Packaging presentation may change.
