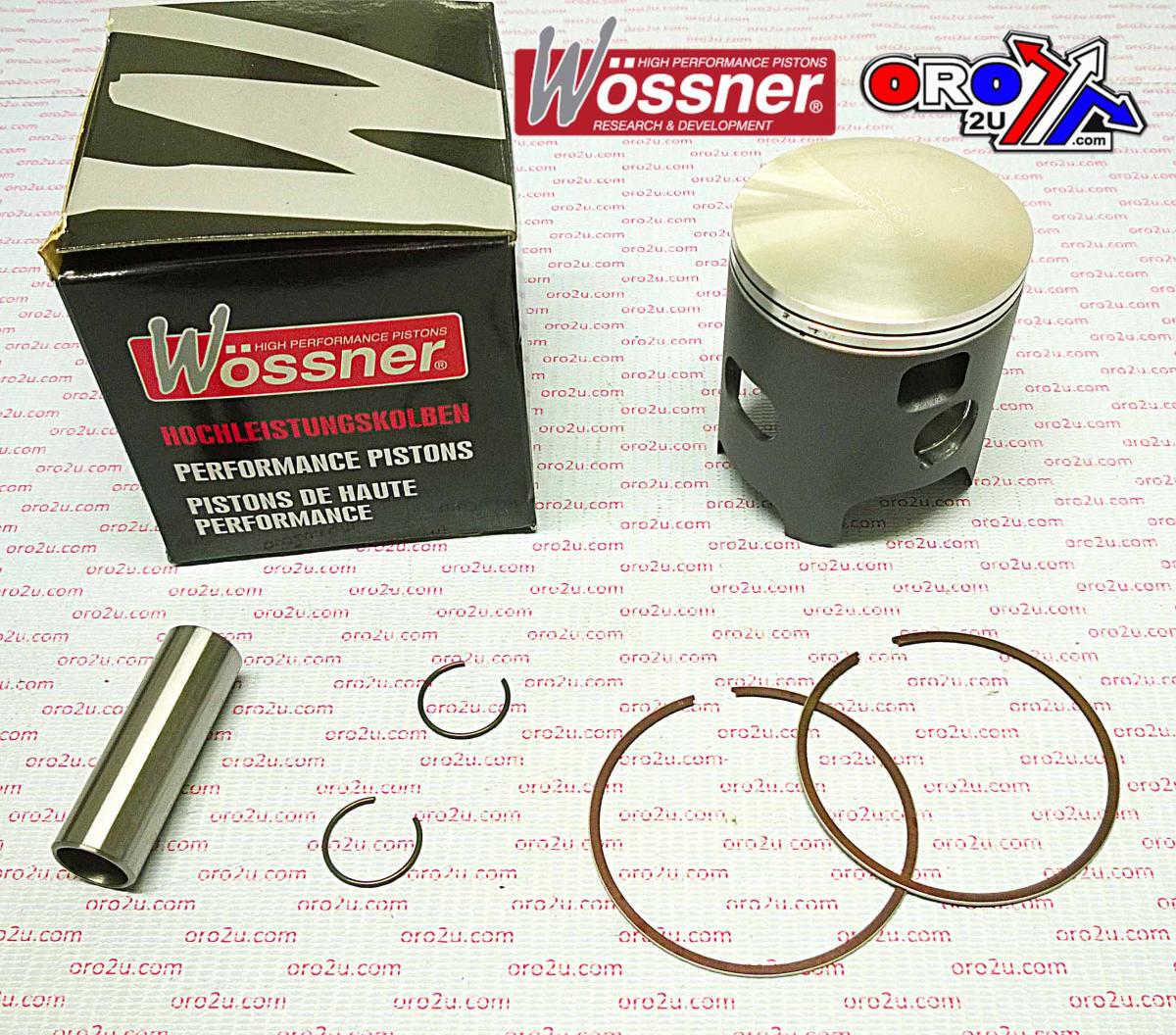

PISTON KIT 92-01 KX250 66.40 C, WOSSNER 8026DC KAWASAKI MX

Piston kit 66.42mm Bore 66.36 Wossner 8021DC (+0.02)

KAWASAKI
KX250 1992 - 2001,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W617.C.WO (oro2u.com)
Wossner Piston Kawasaki KX250 66.42 mm Bore (PN# 8026DC)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640 x 2

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)

1992 Kawasaki KX 250 1993 Kawasaki KX 250 1994 Kawasaki KX 250 1995 Kawasaki KX 250 1996 Kawasaki KX 250 1997 Kawasaki KX 250 1998 Kawasaki KX 250 1999 Kawasaki KX 250

2000 Kawasaki KX 250 2001 Kawasaki KX 250
