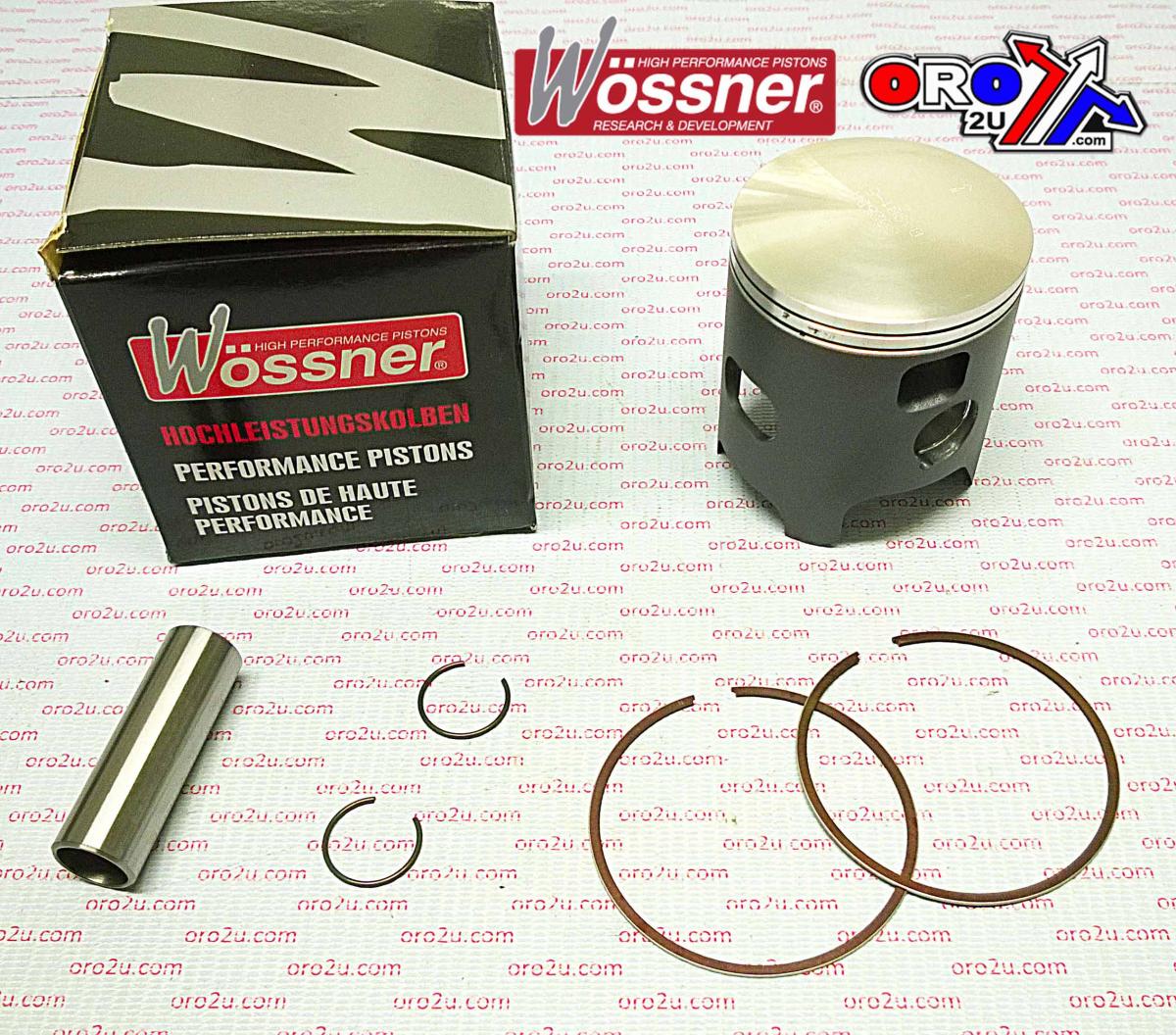

PISTON KIT 92-01 KX250 66.40 B, WOSSNER 8026DB KAWASAKI MX

KAWASAKI
KX250 1992 - 2001,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W617.B.WO (phoenixmotos.com)
Wossner Piston Kawasaki KX250 66.41 mm Bore (PN# 8026DB)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640 x 2

Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)

2000 Kawasaki KX 250 2001 Kawasaki KX 250
