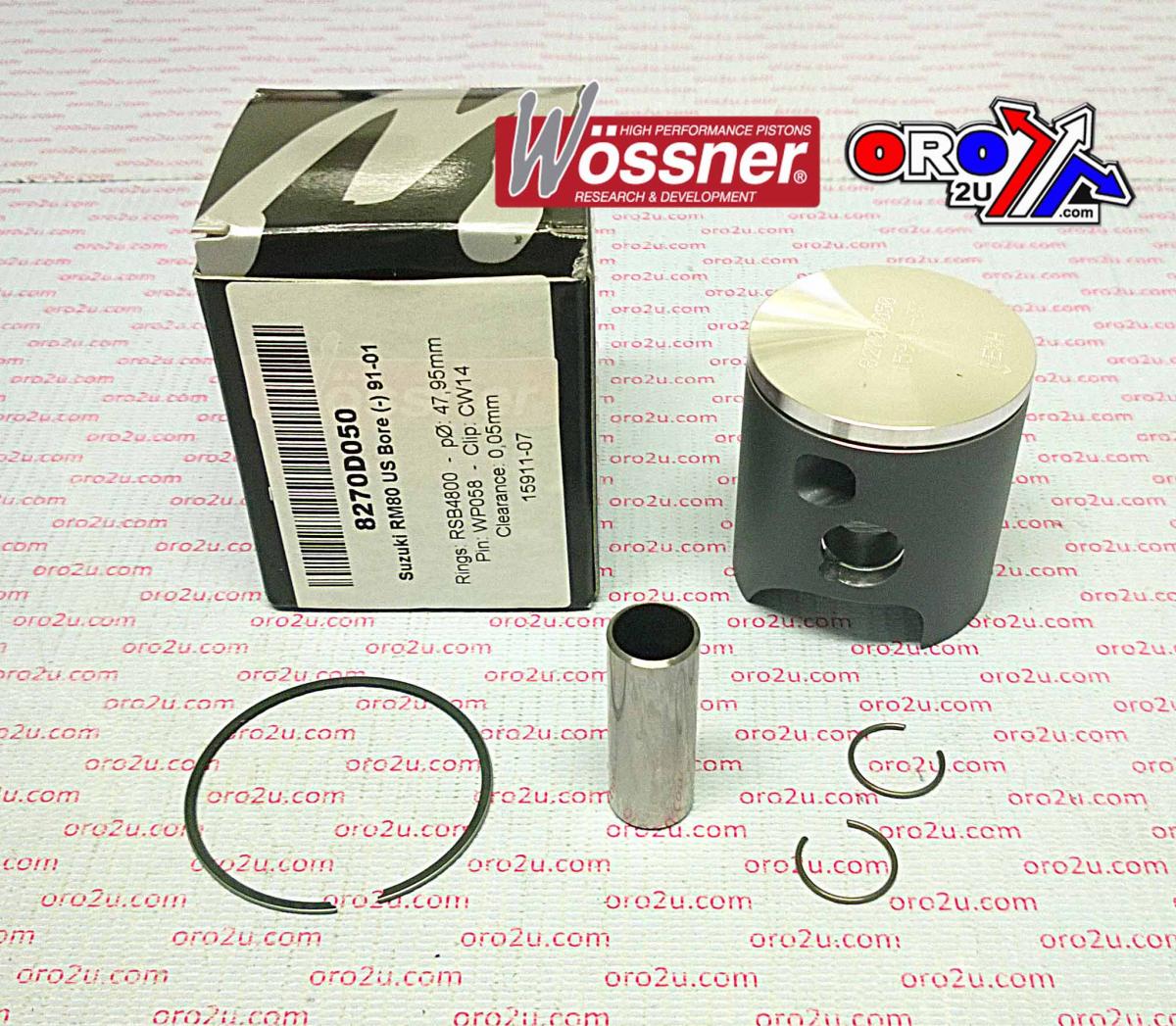

PISTON KIT 91-01 RM80 47.50, WOSSNER 8270DA SUZUKI MX 12110-03B00-0F0

Piston kit 47.50mm Bore 47.45 Wossner 8270DA (STD)

SUZUKI
RM80 1991 - 2001, (US BORE)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W645+P0.WO (oro2u.com)
Wossner Piston Kawasaki KX80 47.50 mm Bore (PN# 8270DA)
Lock P/N CW14
Pin P/N WP058
Ring Set P/N RSB4800

Display (cm3) 82
Hub stroke (mm) 46.80
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 27.00
Theorectical weight (G)

Cross reference numbers ONLY.
12110-03B00-0F0, 645M04750
