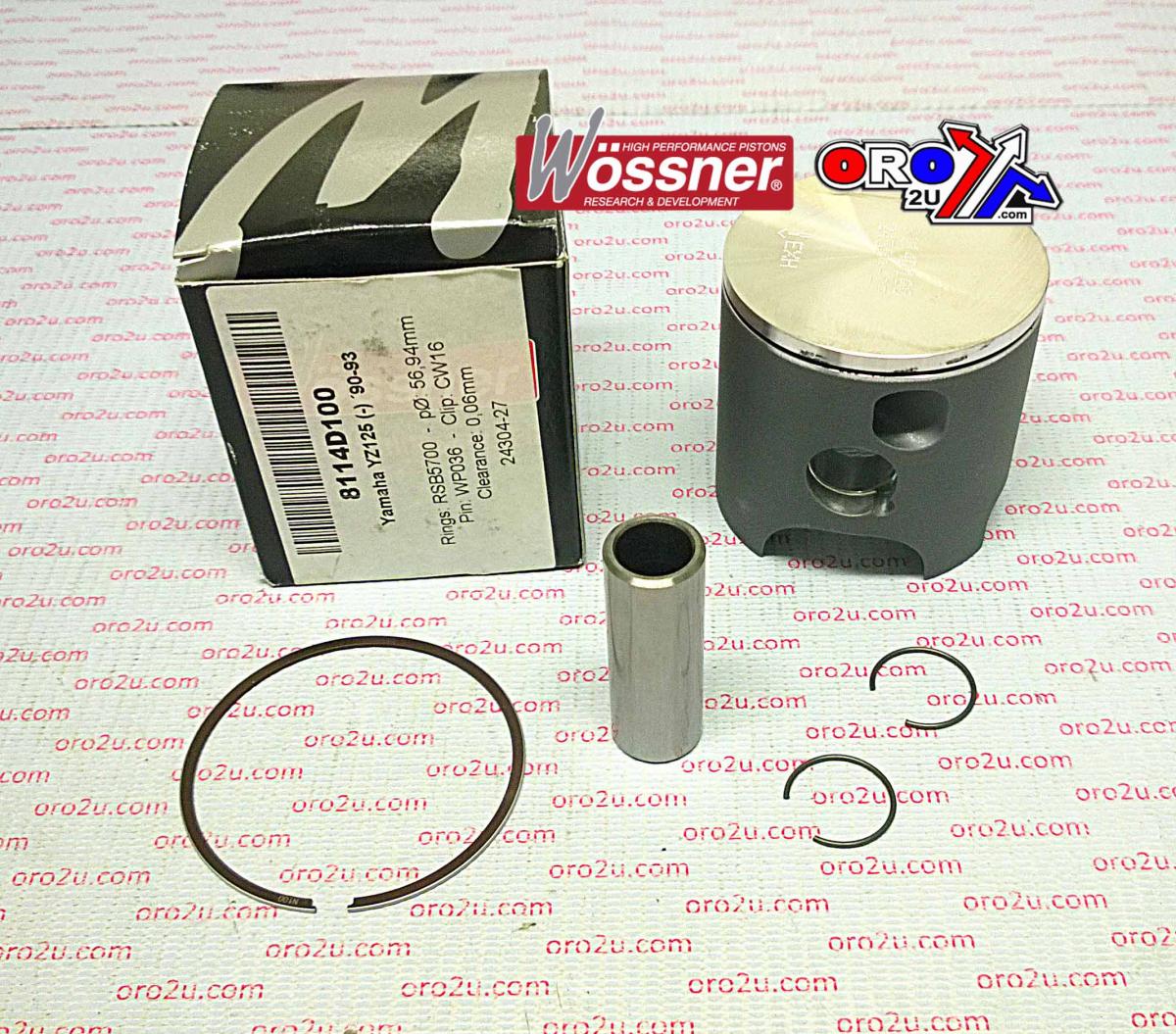

PISTON KIT 90-93 YZ125 57.00, WOSSNER 8114D100 YAMAHA MX

YAMAHA
YZ125 1990 - 1993,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W629+100.WO (phoenixmotos.com)
Wossner Piston Yamaha YZ125 56 mm Bore (PN# 8114D100)
Lock P/N CW16
Pin P/N WP036
Ring Set P/N RSB5700
Rod P/N P2047

Display (cm3) 124
Hub stroke (mm) 50.70
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)

1990 Yamaha YZ 125 1991 Yamaha YZ 125 1992 Yamaha YZ 125 1993 Yamaha YZ 125
