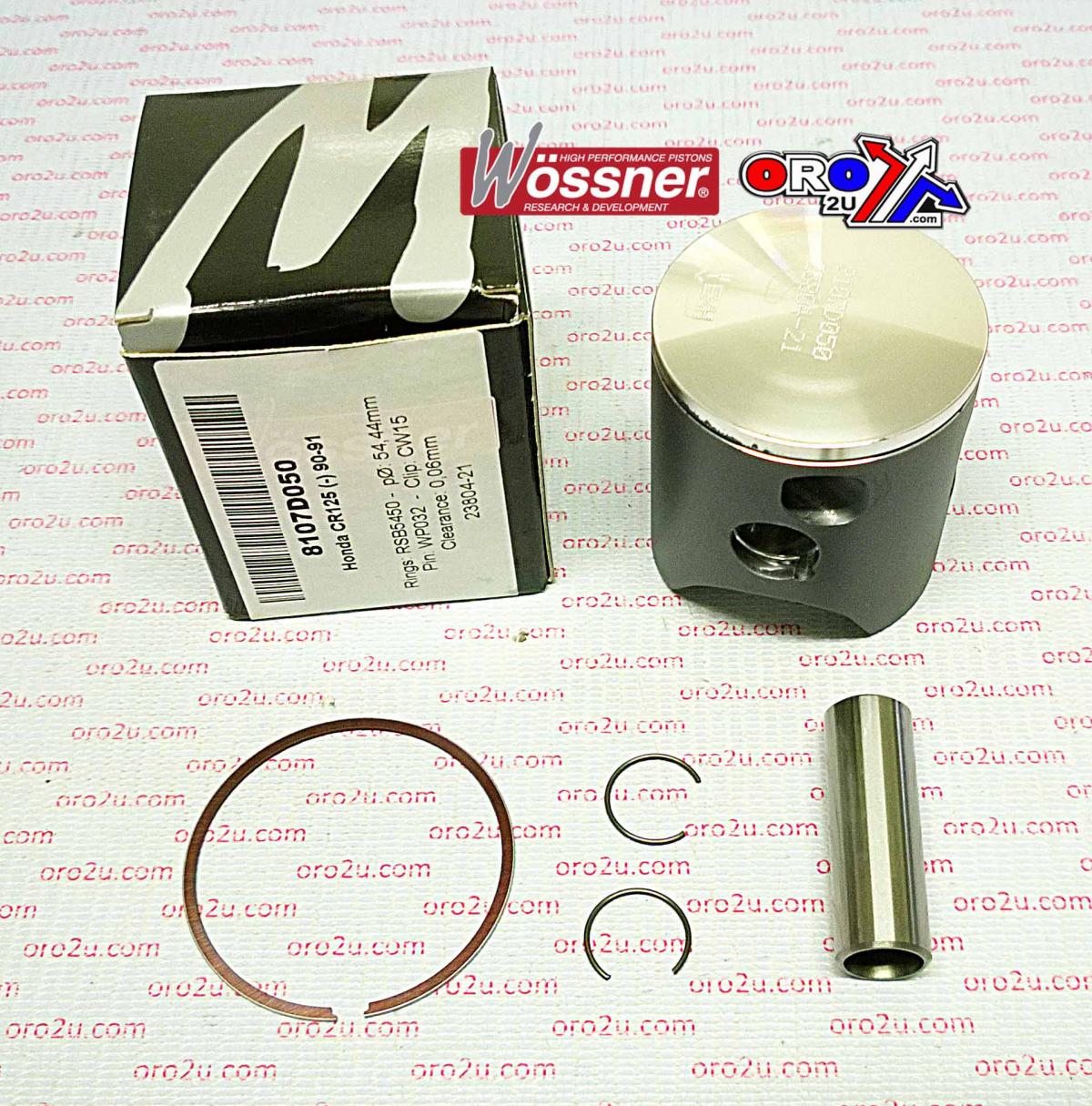

PISTON KIT 90-91 CR125 54.00, WOSSNER 8107DB HONDA MX

Piston kit 54.01mm Bore 53.95 Wossner 8107DB (+0.01)

HONDA
CR125 1990 - 1991,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W595+00B.WO (oro2u.com)
Wossner Piston Honda CR125 54.01 mm Bore (PN# 8107DB)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400
Rod P/N P2009

Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)
