Wiseco
Wiseco Forged Piston Kit 97.00 mm 13.5:1 CR for KTM 450 SX-F 2007–2012 4938M09700
Wiseco Forged Piston Kit 97.00 mm 13.5:1 CR for KTM 450 SX-F 2007–2012 4938M09700
Regular price
£287.78 GBP
Regular price
Sale price
£287.78 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Wiseco 4938M09700 is a piston kit for a 97.00 mm bore.
Wiseco catalogue applications
| Make | Model | Years |
|---|---|---|
| KTM | 450 SX-F | 2007–2012 |
| KTM | 450 XC-F | 2007–2010 |
| KTM | 450 SX | 2009–2011 |
Specifications
- Manufacturer part number: 4938M09700
- Product Series: 4 Stroke Forged Series
- Bore Diameter: 97.00 MM
- Piston Diameter: 96.95 MM
- Piston Oversize: STD
- Piston Material: 2618
- Skirt Coating: Yes
- Compression Ratio Actual: 13.5:1
Included components
Ring Set #9700ZS, Piston pin #S682, Circlip #CW19.
Cylinder preparation
Wiseco specifies: Deglaze / Hone.
Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

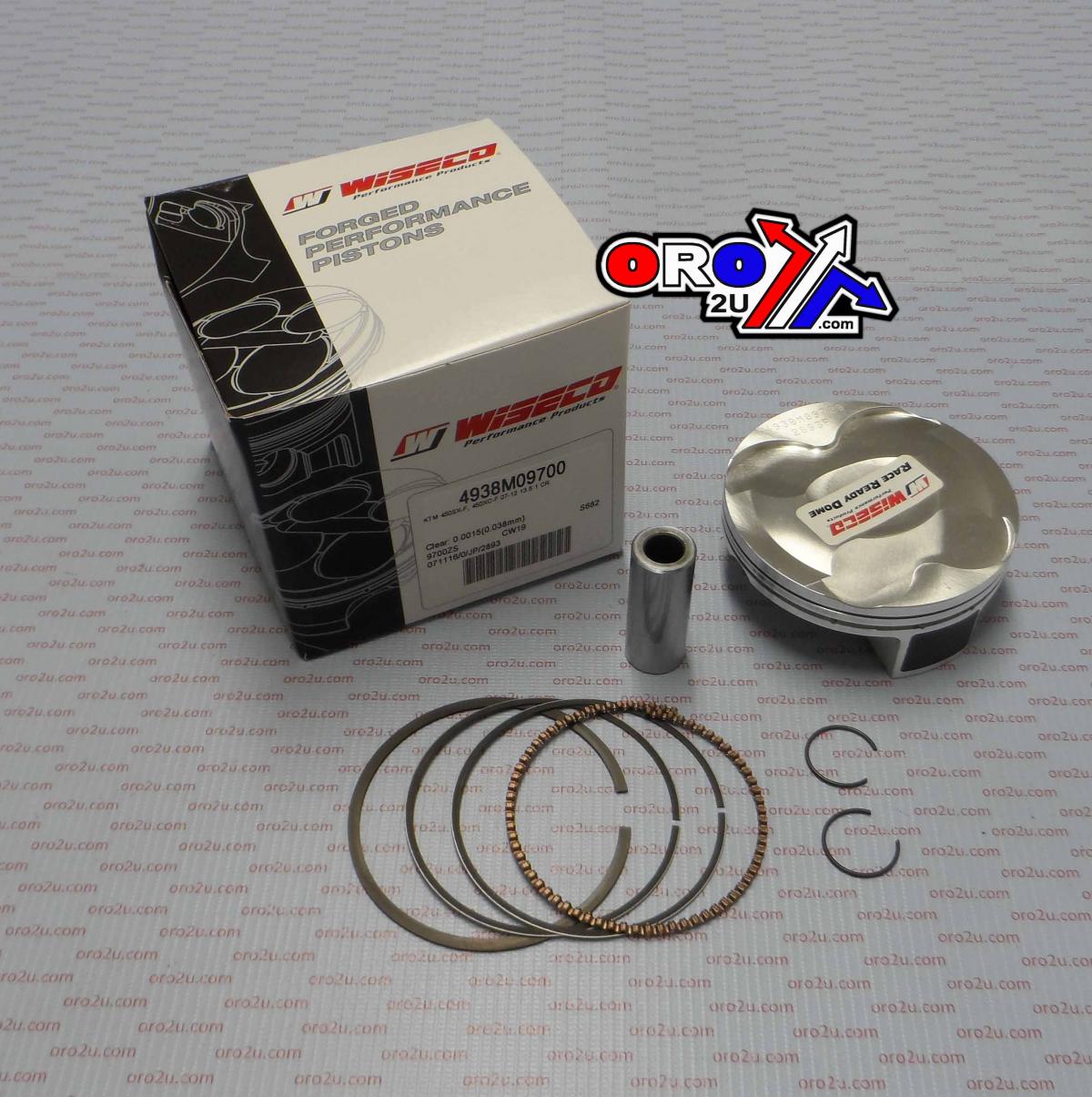

Manufacturer photograph for this reference. Packaging presentation may change.
