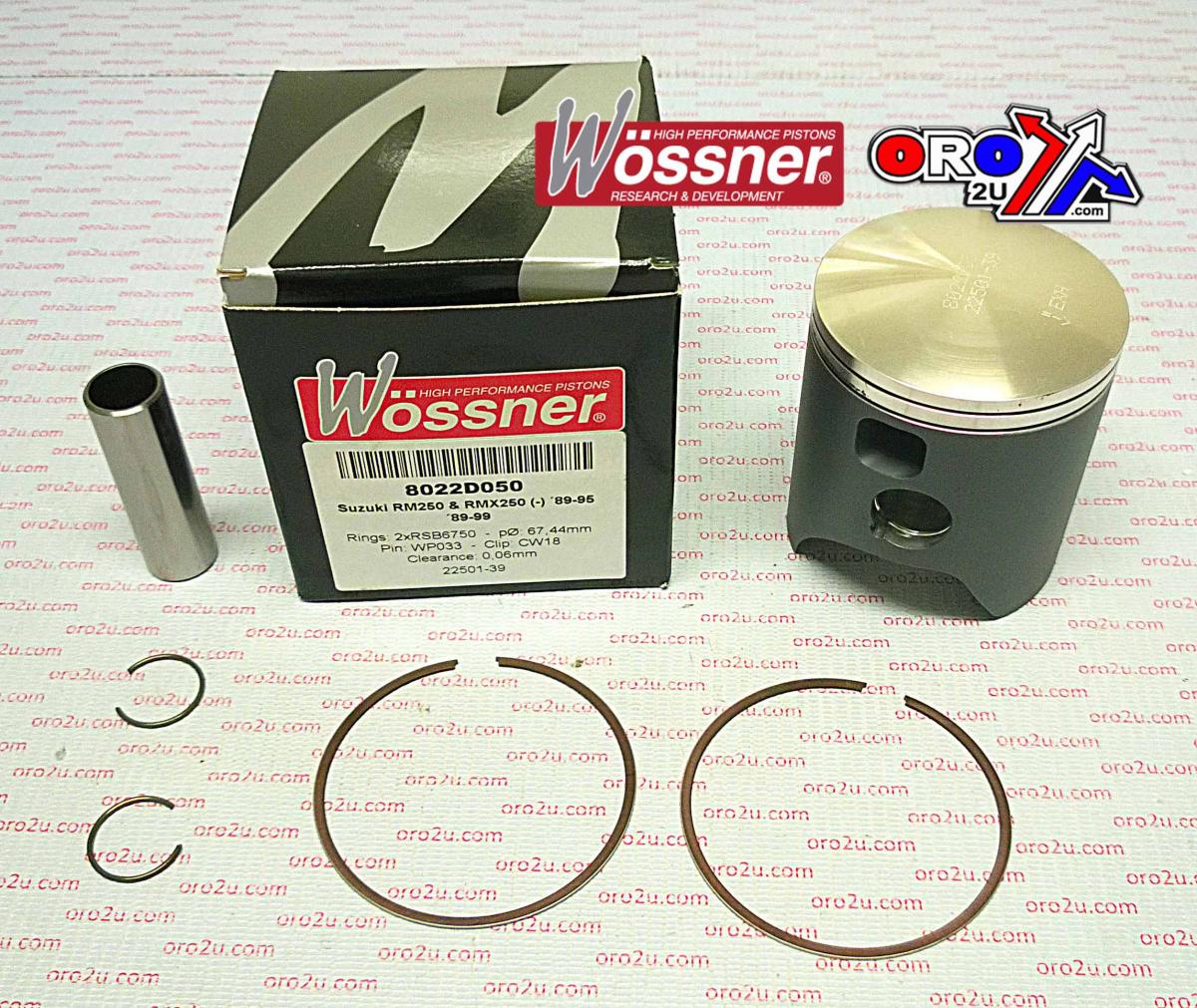

PISTON KIT 89-95 RM250 67.00 A, WOSSNER 8022DA SUZUKI MX 12110-29E20-0F0

Piston 67.00mm Bore 66.94 Wossner 8022DA (STD)

Suzuki
RM250 1989-1995,
RMX250 1993-1995,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W642.00A.WO (oro2u.com)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6700 x 2

Display (cm3) 246
Hub stroke (mm) 70.80
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 37.00
Theorectical weight (G)

Cross reference numbers ONLY.
12110-29E20-0F0, 642M06700

Cross reference numbers ONLY.
PISTON 12110-28C11-0F0, 12110-29E20-0F0 , RING, PISTON 12141-41600, 12141-41620, PIN, PISTON 12151-28C00, 12151-37F00 , CIRCLIP 09381-18002,
