PISTON KIT 88-92 YZ80 49.00, WOSSNER 8187D100 YAMAHA MX

YAMAHA
YZ80 1988 - 1992,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W569+100.WO (phoenixmotos.com)

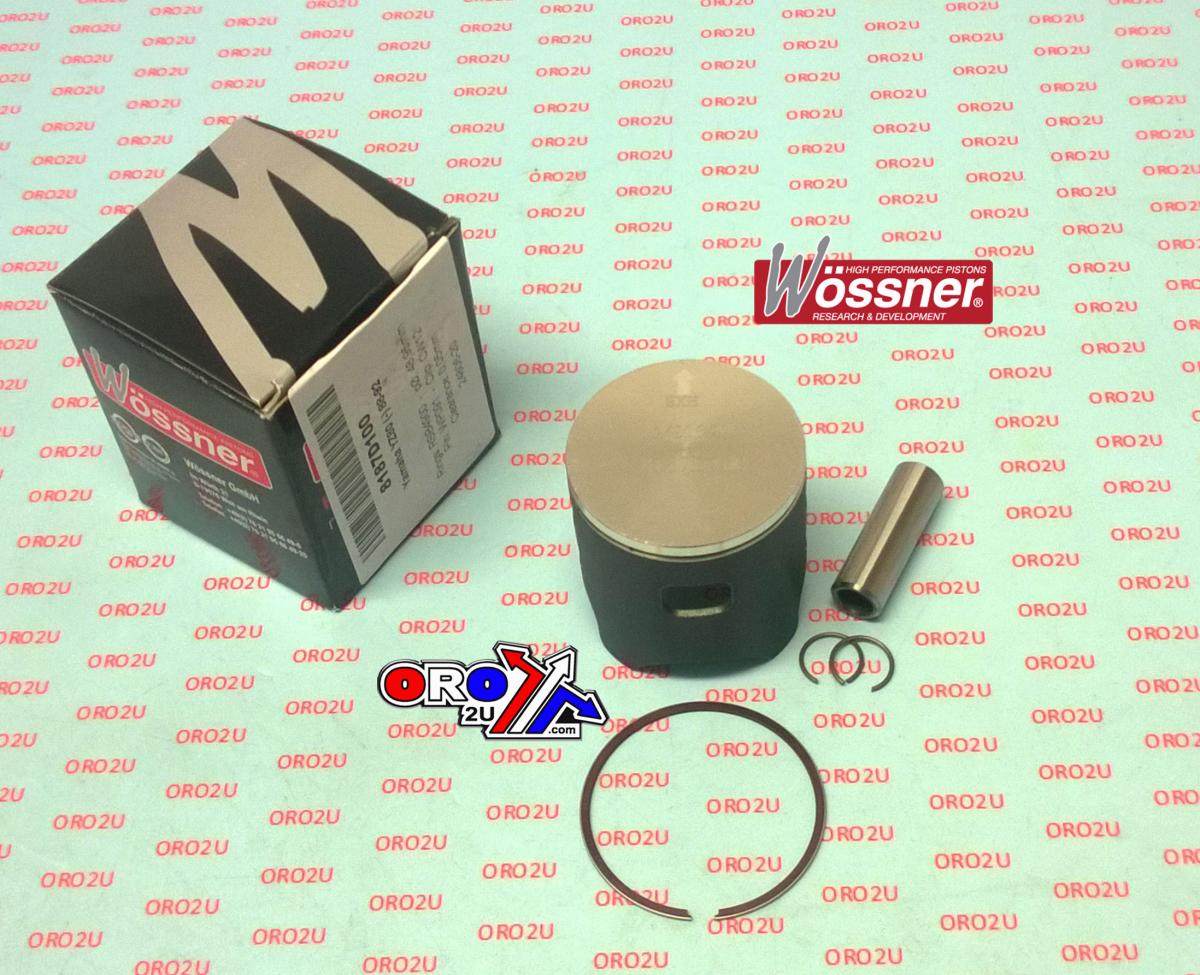

Wossner Piston Yamaha YZ80 49 mm Bore (PN# 8187D100)
Lock P/N CW12
Pin P/N WP091
Ring Set P/N RSB4900

Display (cm3) 82
Hub stroke (mm) 45.60
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 27.00
Theorectical weight (G)

1988 Yamaha YZ 80 1989 Yamaha YZ 80 1990 Yamaha YZ 80 1991 Yamaha YZ 80 1992 Yamaha YZ 80
