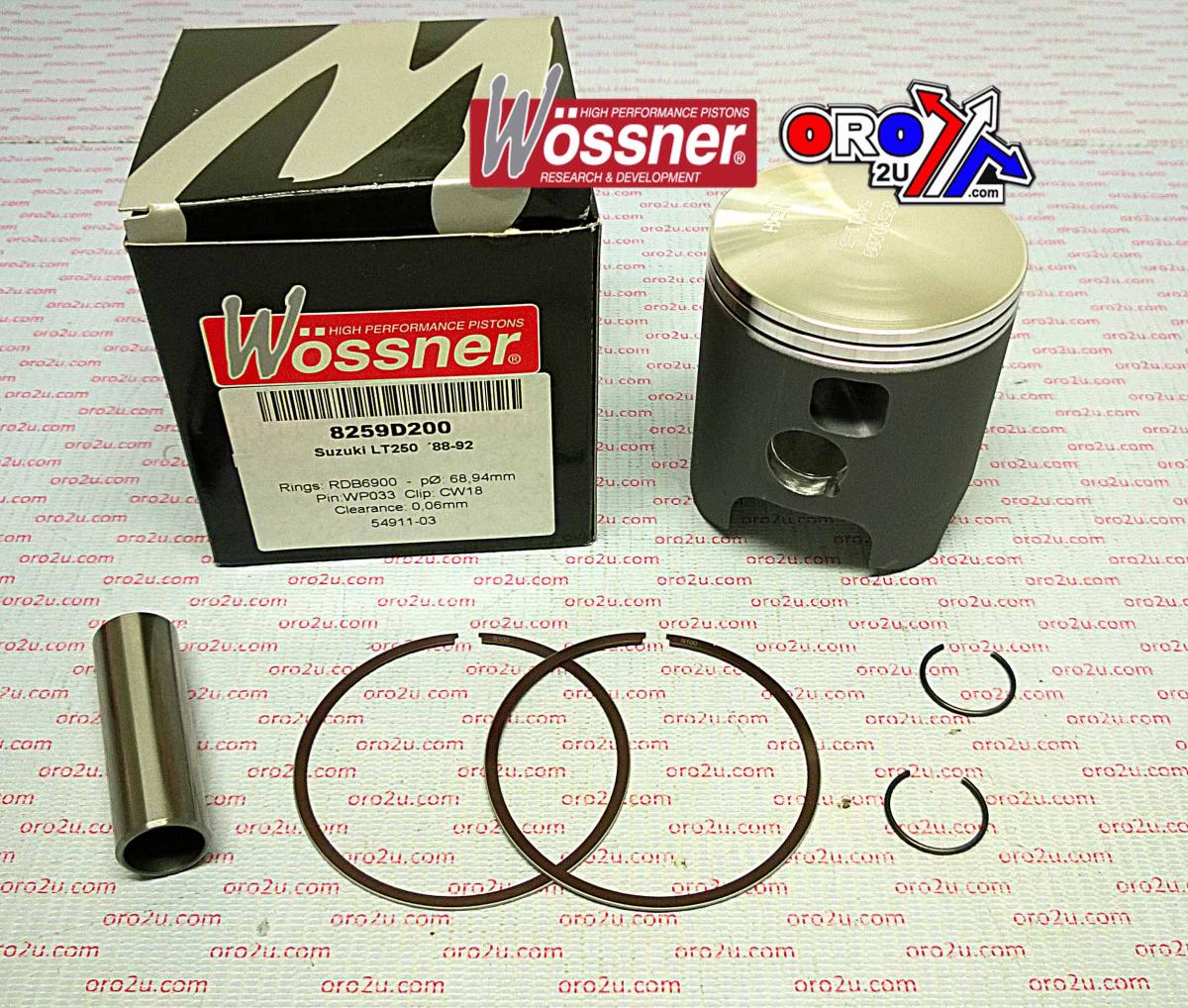

PISTON KIT 88-92 LT250 69.00, WOSSNER 8259D200 SUZUKI ATV

SUZUKI (ATV)
LT2501988 - 1992,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W571+2.00.WO (phoenixmotos.com)
Wossner Piston Suzuki LT250 67 mm Bore (PN# 8259D200)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RDB6900

Display (cm3) 246
Hub stroke (mm) 70.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 37.20
Theorectical weight (G)

- 1988 Suzuki LT 250 - 1989 Suzuki LT 250 - 1990 Suzuki LT

250 - 1991 Suzuki LT 250 - 1992 Suzuki LT 250
