Wiseco Pro-Lite Piston Kit 68.00 mm for Suzuki LT250 R Quadracer 1988–1992 571M06800

Wiseco 571M06800 is a piston kit for a 68.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 571M06800
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 68.00 MM
• Piston Diameter: 67.94 MM
• Piston Oversize: 1.00 MM
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2677CD, Piston pin #S484, Circlip #CW18.

Cylinder preparation

Wiseco specifies: Bore & Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

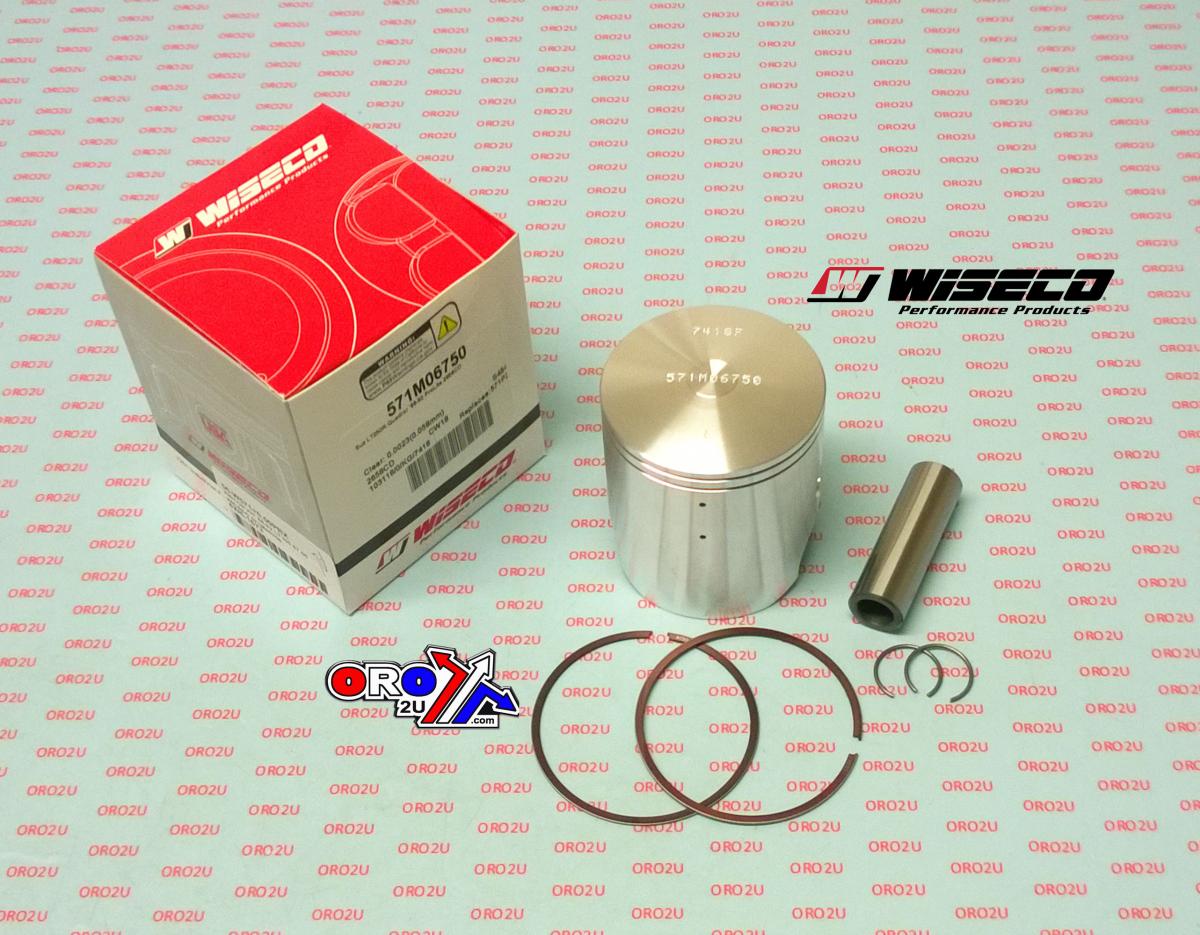

Manufacturer photograph for this reference. Packaging presentation may change.
