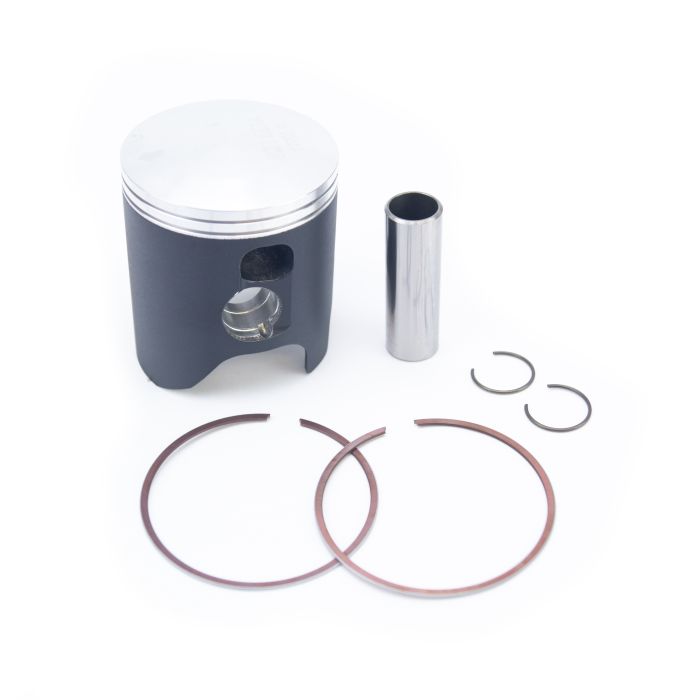

PISTON KIT 88-91 YZ250 68.50, WOSSNER 8134D050 YAMAHA MX

Piston kit 68.50mm Bore 68.44 Wossner 8134D050 (+0.50)

YAMAHA
YZ250 1988 - 1991,
WR250 1988 - 1991,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

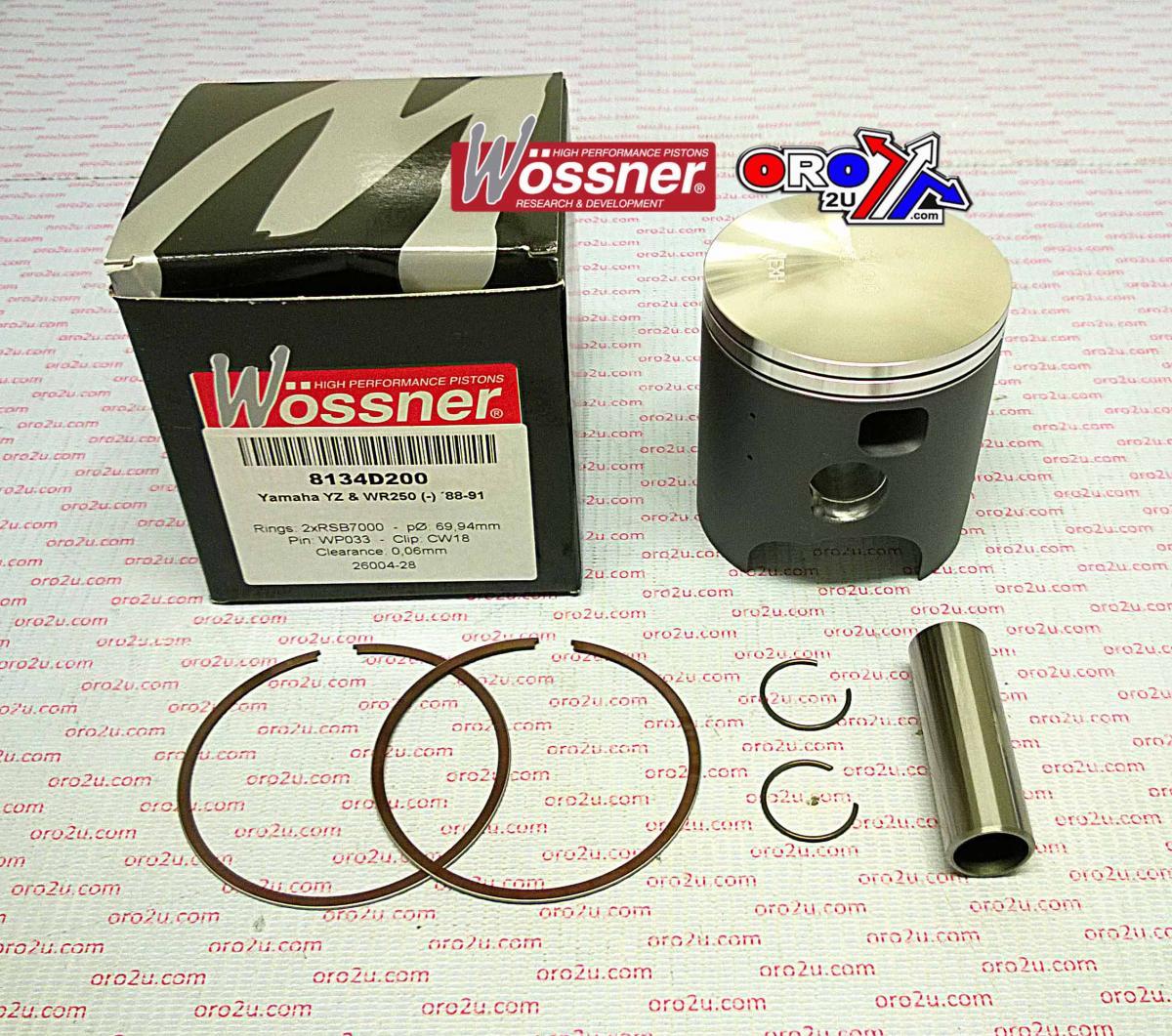

Wossner Piston Yamaha YZ250 68.50 mm Bore (PN# 8134D050)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB68500 X 2

Display (cm3) 246
Hub stroke (mm) 68.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 36.00
Theorectical weight (G)
