Wiseco Pro-Lite Piston Kit 56.00 mm for Kawasaki KX125 1988–1989 566M05600

Wiseco 566M05600 is a piston kit for a 56.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 566M05600
• Product Series: 2 Stroke Pro-Lite Series
• Bore Diameter: 56.00 MM
• Piston Diameter: 55.95 MM
• Piston Oversize: STD
• Piston Material: 4032
• Skirt Coating: No

Included components

Ring Set #2205CS, Piston pin #S514, Circlip #CW16.

Cylinder preparation

Wiseco specifies: Deglaze / Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

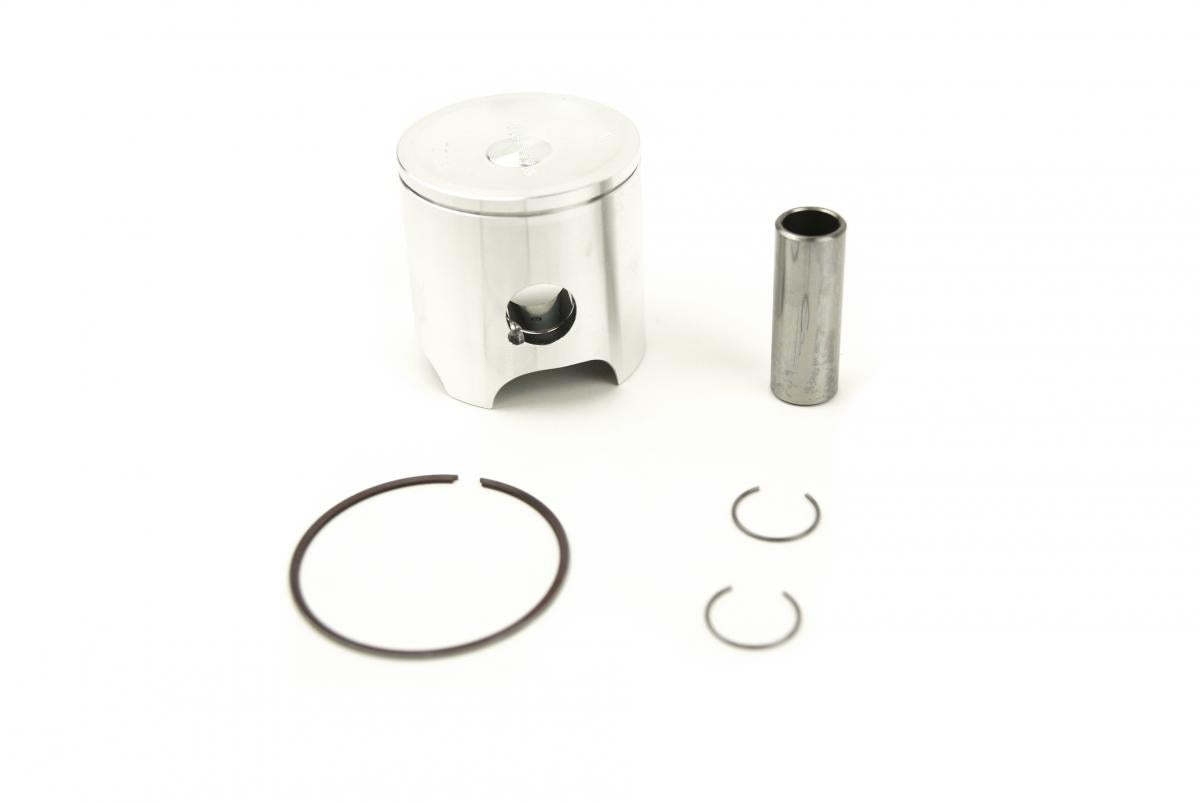

Manufacturer photograph for this reference. Packaging presentation may change.
