PISTON KIT 88-89 CR125 55.00, WOSSNER 8125D100 HONDA MX

HONDA
CR125 1988 - 1989,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W564+P4.WO (phoenixmotos.com)

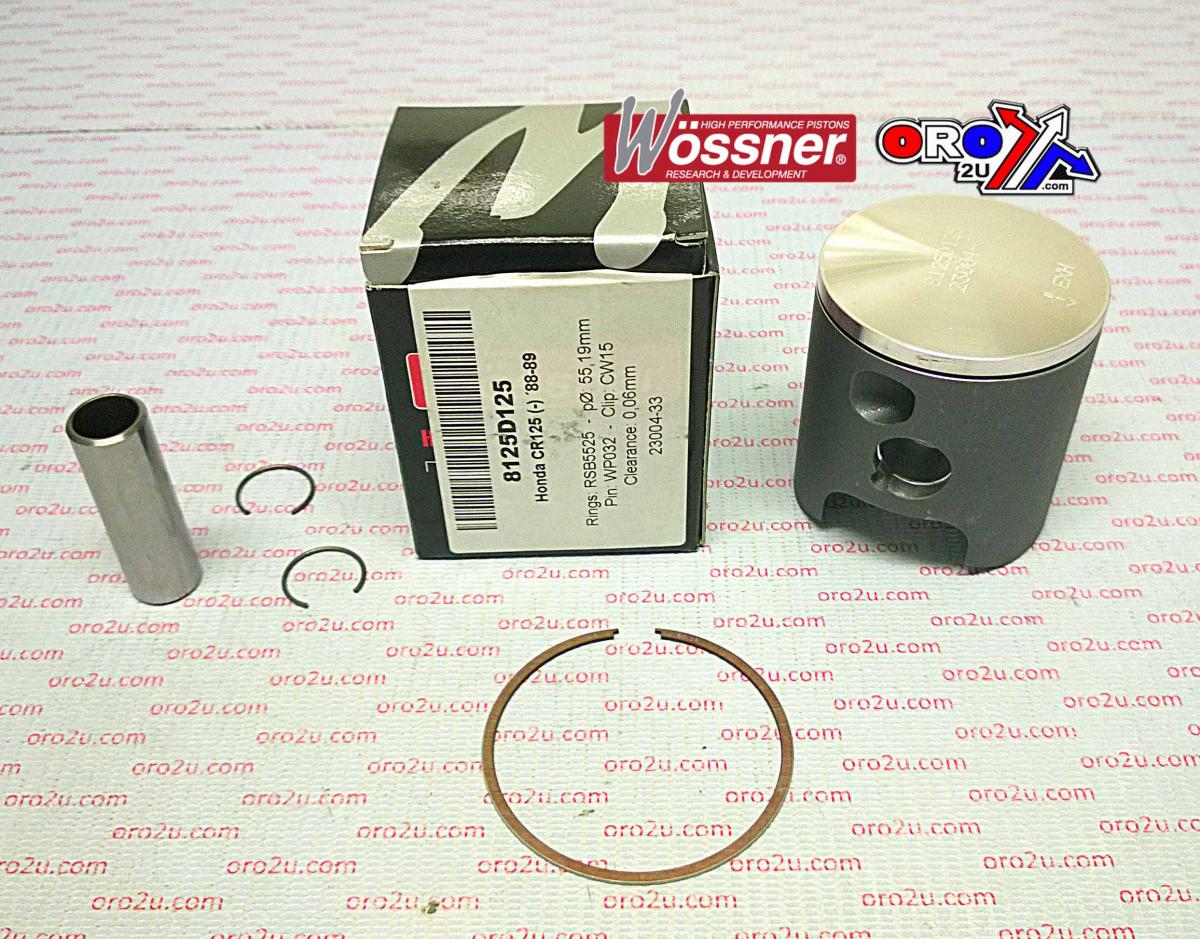

Wossner Piston Honda CR125 55 mm Bore (PN# 8125D100)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5500
Rod P/N P2009

Display (cm3) 125
Hub stroke (mm) 54.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)
