Wiseco Forged Piston Kit 40.50 mm 11:1 CR for Honda XR50 1988–2008 4798M04050

Wiseco 4798M04050 is a piston kit for a 40.50 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4798M04050
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 40.50 MM
• Piston Diameter: 40.46 MM
• Piston Oversize: 1.50 MM
• Piston Material: 4032
• Skirt Coating: No
• Compression Ratio Actual: 11:1

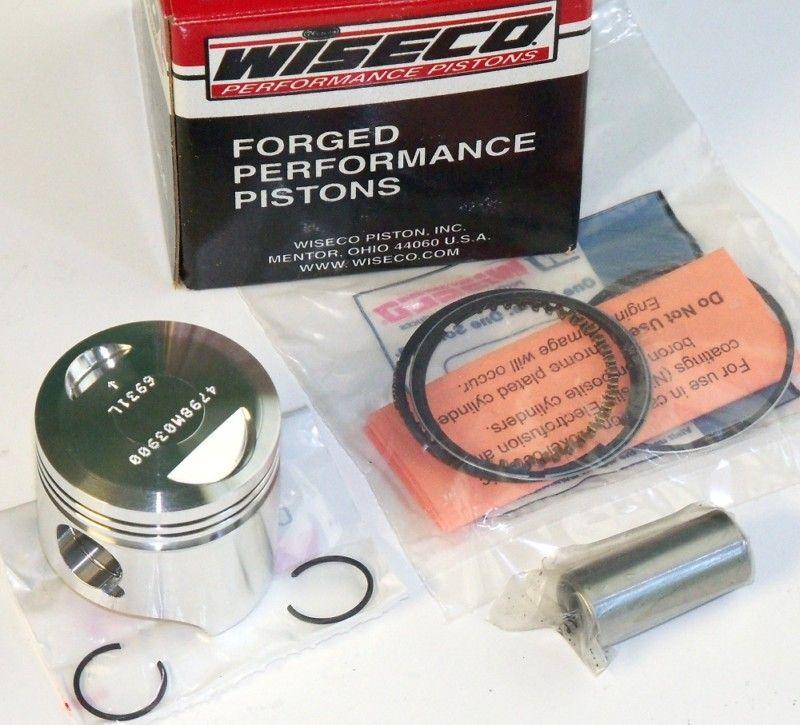

Included components

Ring Set #4050XZ, Piston pin #S671, Circlip #CW13.

Cylinder preparation

Wiseco specifies: Bore and Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.
