PISTON KIT 88-07 YFS200 66.00, WOSSNER 8101DA YAMAHA ATV

YAMAHA (ATV)
YFS200 Blaster 1988 - 2006,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W573+000.WO (phoenixmotos.com)

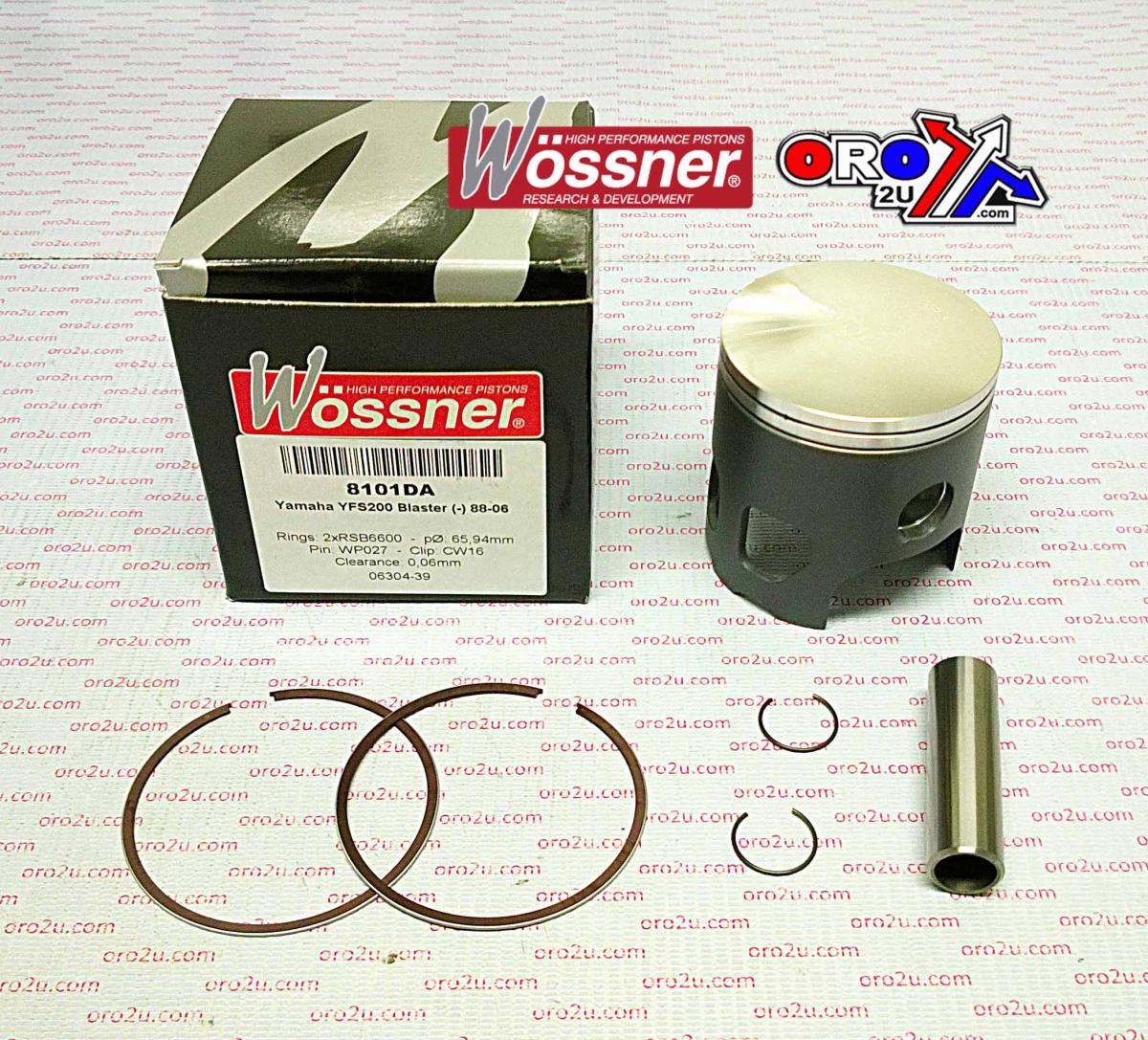

Wossner Piston Yamaha YFS200 Blaster 66 mm Bore (PN# 8101DA)
Lock P/N CW16
Pin P/N WP027
Ring Set P/N RSB6600 x 2
Rod P/N P2030

Display (cm3) 199
Hub stroke (mm) 57.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.90
Theorectical weight (G)

1988 Yamaha YFS 200 Blaster 1989 Yamaha YFS 200 Blaster 1990 Yamaha YFS 200 Blaster 1991 Yamaha YFS 200 Blaster 1992 Yamaha YFS 200 Blaster 1993 Yamaha YFS 200 Blaster

1994 Yamaha YFS 200 Blaster 1995 Yamaha YFS 200 Blaster 1996 Yamaha YFS 200 Blaster 1997 Yamaha YFS 200 Blaster 1998 Yamaha YFS 200 Blaster 1999 Yamaha YFS 200 Blaster 2000 Yamaha YFS 200 Blaster 2001 Yamaha YFS 200 Blaster 2002 Yamaha YFS 200 Blaster
