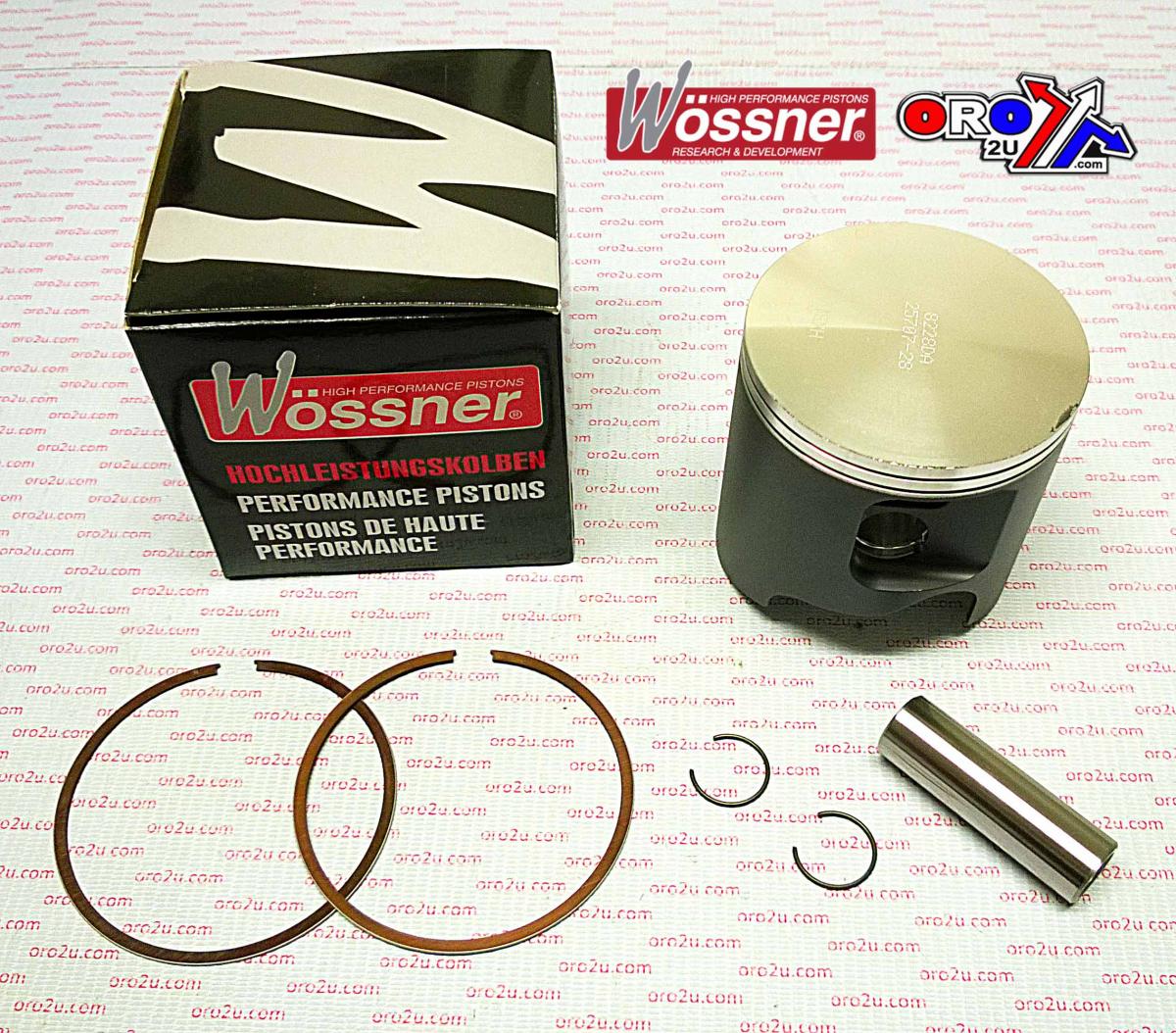

PISTON KIT 88-04 KX500 86.00, WOSSNER 8228DA KAWASAKI MX 13001-1327

Piston kit 86mm Bore 85.93 Wossner 8228DA (STD)

Kawasaki
KX500 1989-2004,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W575.P0.WO (oro2u.com)
Lock P/N CW19
Pin P/N WP019
Ring Set P/N RSC8600 X2
Rod P/N P2039

Display (cm3) 500
Hub stroke (mm) 86.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 37.50
Theorectical weight (G)

Cross reference numbers ONLY.
13001-1327, 09104889, 575M08600,

Kawasaki

• 2004 Kawasaki KX500
• 2003 Kawasaki KX500
• 2002 Kawasaki KX500
• 2001 Kawasaki KX500
• 2000 Kawasaki KX500
• 1999 Kawasaki KX500
• 1998 Kawasaki KX500
• 1997 Kawasaki KX500
• 1996 Kawasaki KX500
• 1995 Kawasaki KX500
• 1994 Kawasaki KX500
• 1993 Kawasaki KX500
• 1992 Kawasaki KX500
• 1991 Kawasaki KX500
• 1990 Kawasaki KX500
• 1989 Kawasaki KX500
• 1988 Kawasaki KX500
