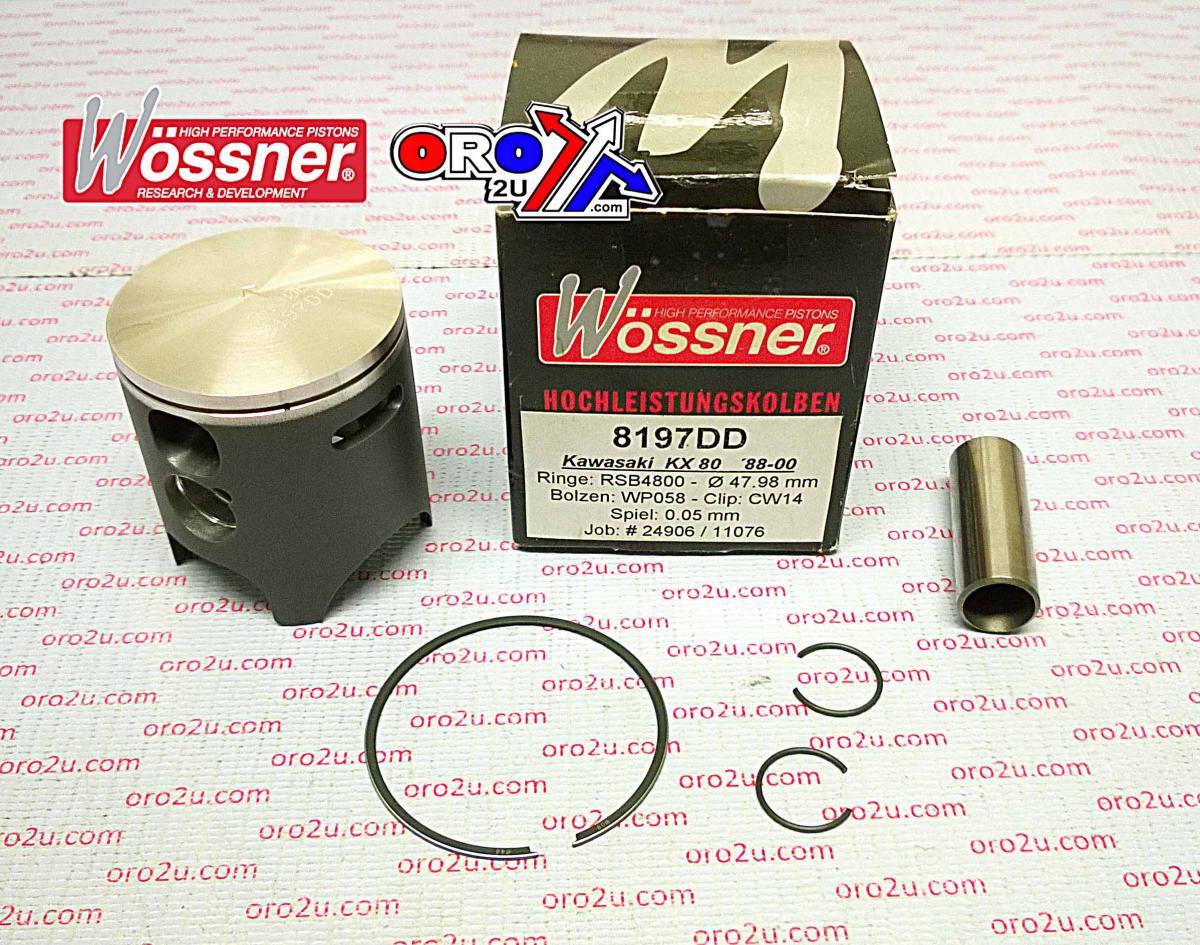

PISTON KIT 88-00 KX80 53.00, WOSSNER 8197D500 KAWASAKI MX

Piston kit 53mm Bore 52.95 Wossner 8197D500 (+500)

KAWASAKI
KX80 1988 - 2000, (US BORE)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W644+P20.WO (oro2u.com)
Wossner Piston Kawasaki KX80 53 mm Bore (PN# 8197D500)
Lock P/N CW14
Pin P/N WP058
Ring Set P/N RSB5300

Display (cm3) 80
Hub stroke (mm) 45.80
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 26.00
Theorectical weight (G)
