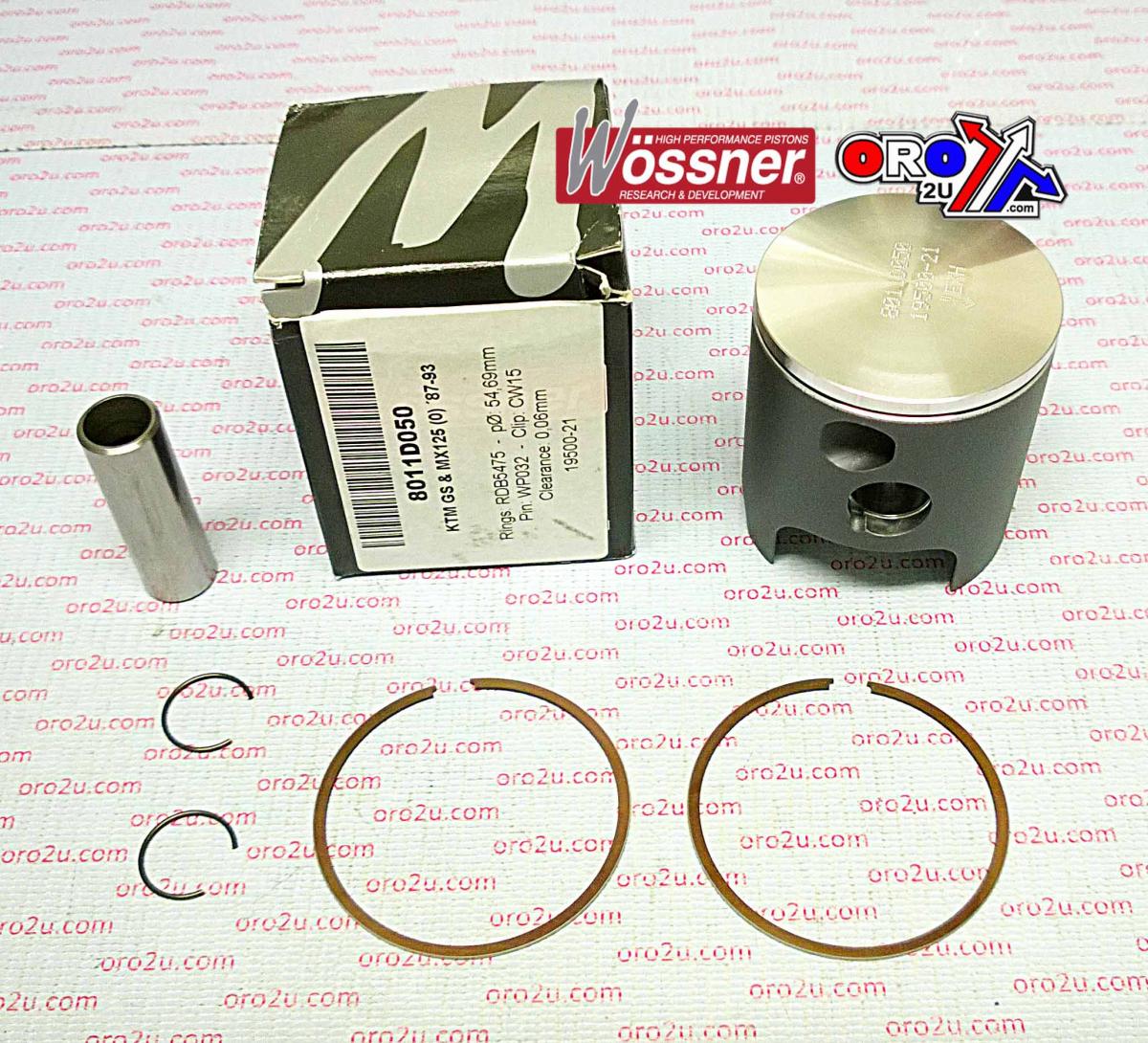

PISTON KIT 87-93 KTM125, WOSSNER 8011DA FORGED MX

KTM
GS125 1987 - 1993,
MX125 1987 - 1993,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W627.00A.WO (phoenixmotos.com)
Wossner Piston KTM GS125 (PN# 8011DA)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5425 x 2

Display (cm3) 125
Hub stroke (mm) 54.10
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)

1987 KTM GS 125 1987 KTM MX 125 1988 KTM GS 125 1988 KTM MX 125 1989 KTM GS 125 1989 KTM MX 125 1990 KTM GS 125 1990 KTM MX 125

1991 KTM GS 125 1991 KTM MX 125 1992 KTM GS 125 1992 KTM MX 125 1993 KTM GS 125 1993 KTM MX 125
