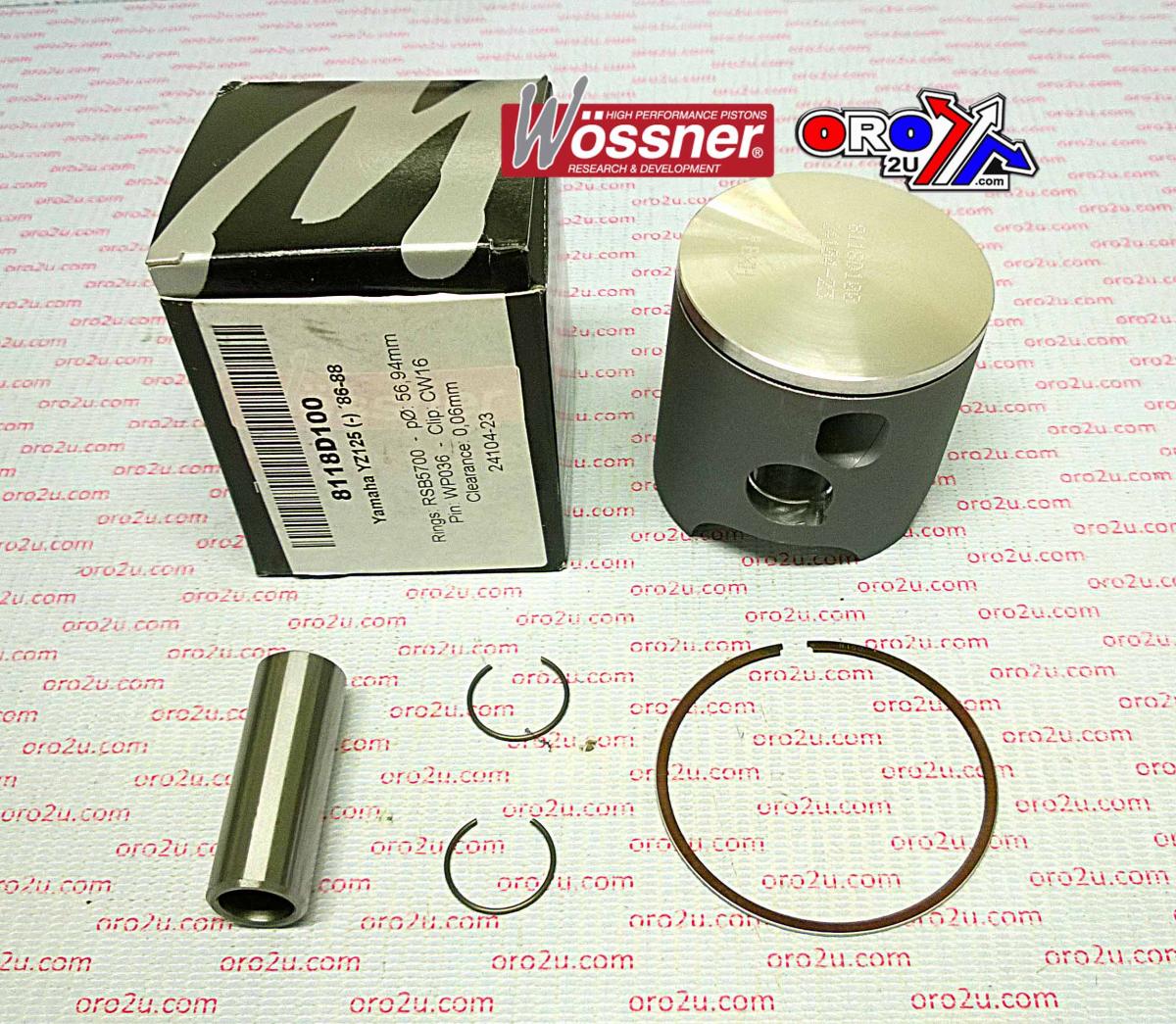

PISTON KIT 86-88 YZ125 56.00, WOSSNER 8118DA YAMAHA MX 1LX-11635-00-00

YAMAHA
YZ125 1986 - 1988,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W559+000.WO (phoenixmotos.com)
Wossner Piston Yamaha YZ125 56 mm Bore (PN# 8118DA)
Lock P/N CW16
Pin P/N WP036
Ring Set P/N RSB5600

Display (cm3) 123
Hub stroke (mm) 50.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 30.00
Theorectical weight (G)

Cross reference numbers ONLY.
1LX-11635-00-00
