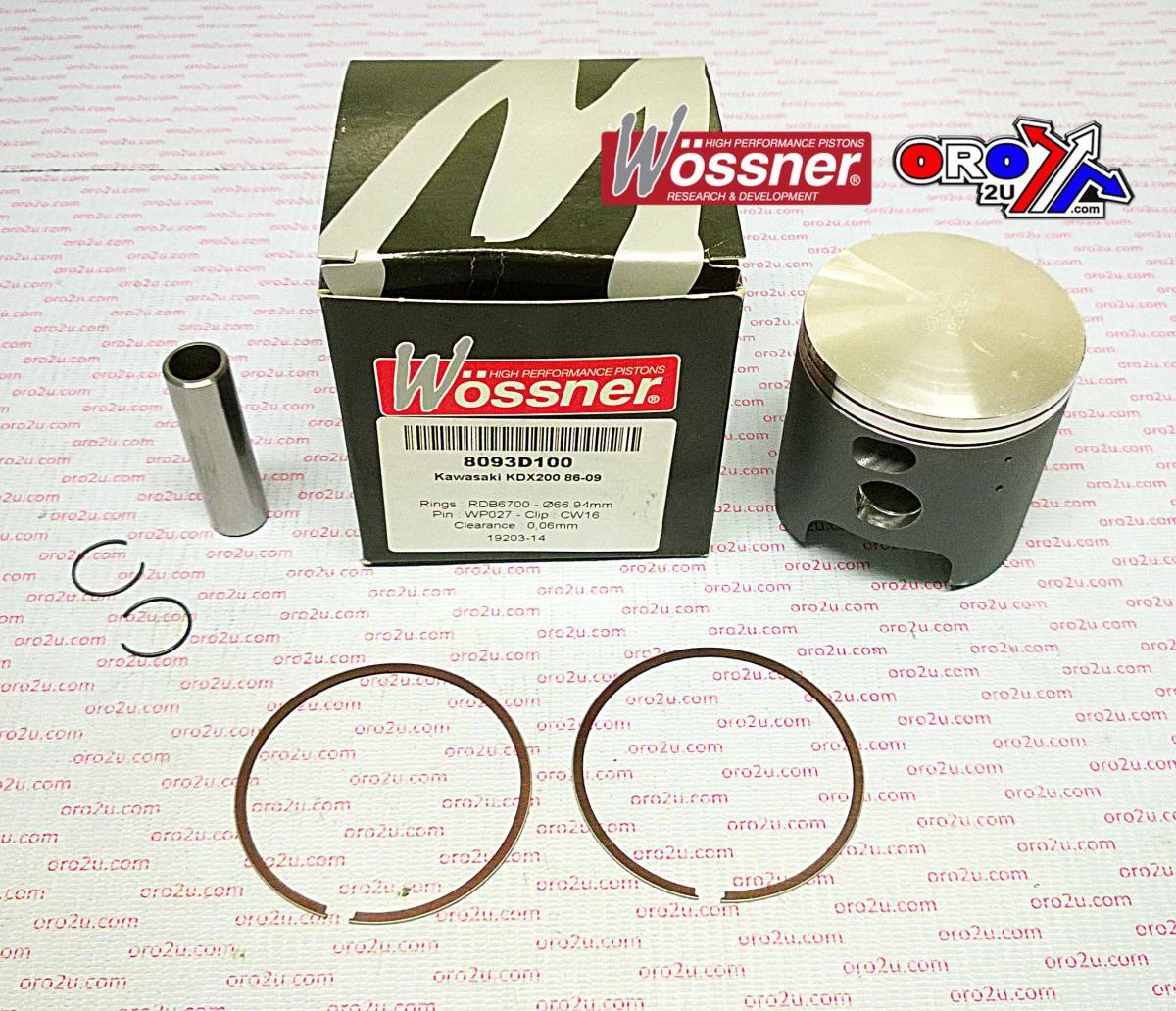

PISTON KIT 86-09 KDX200 67.00, WOSSNER 8093D100 KAWASAKI MX

Piston kit 67mm Bore 66.94 Wossner 8093D100 (+1.00)

KAWASAKI
KDX200 1986 - 2006,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W597+P4.WO (oro2u.com)
Wossner Piston Kawasaki KDX200 67 mm Bore (PN# 8093D100)
Lock P/N CW16
Pin P/N WP027
Ring Set P/N RSB6700 x 2
Rod P/N P2033

Display (cm3) 198
Hub stroke (mm) 58.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 32.00
Theorectical weight (G)

1986 Kawasaki KDX 200 1987 Kawasaki KDX 200 1988 Kawasaki KDX 200 1989 Kawasaki KDX 200 1990 Kawasaki KDX 200 1991 Kawasaki KDX 200

1992 Kawasaki KDX 200 1993 Kawasaki KDX 200 1994 Kawasaki KDX 200 1995 Kawasaki KDX 200 1996 Kawasaki KDX 200 1997 Kawasaki KDX 200 1998 Kawasaki KDX 200 1998 Kawasaki KDX 220 1999 Kawasaki KDX 200
