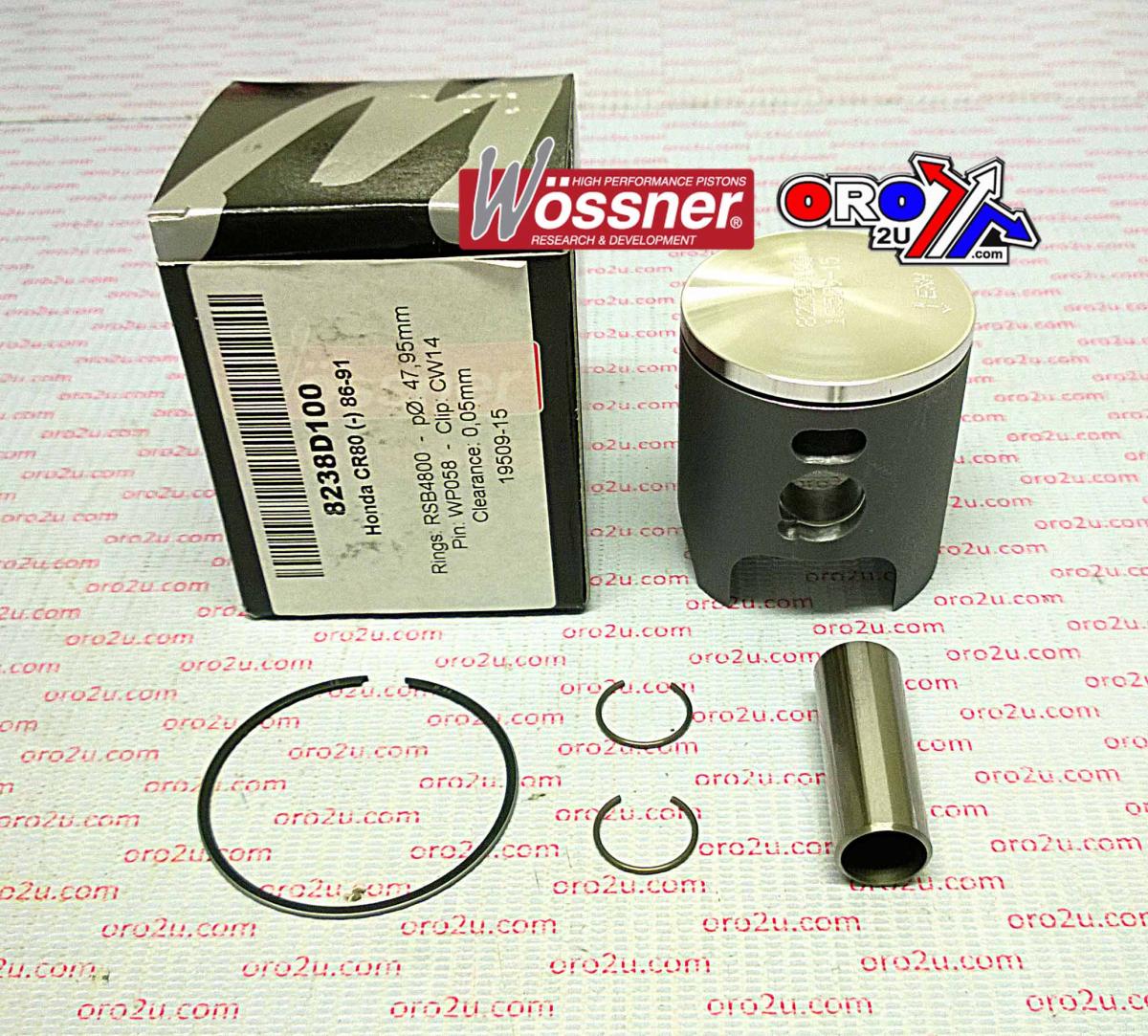

PISTON KIT 86-07 CR80 48.00, WOSSNER 8238D100 HONDA MX

Piston kit 48mm Bore 47.95 Wossner 8237D100 (+1.00)

HONDA
CR80 1992 - 2002, (US BORE)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W643.P4.WO (oro2u.com)
Wossner Piston Honda CR80 48 mm Bore (PN# 8238D100)
Lock P/N CW14
Pin P/N WP058
Ring Set P/N RSB4800

Display (cm3) 80
Hub stroke (mm) 70.80
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 37.00
Theorectical weight (G)
