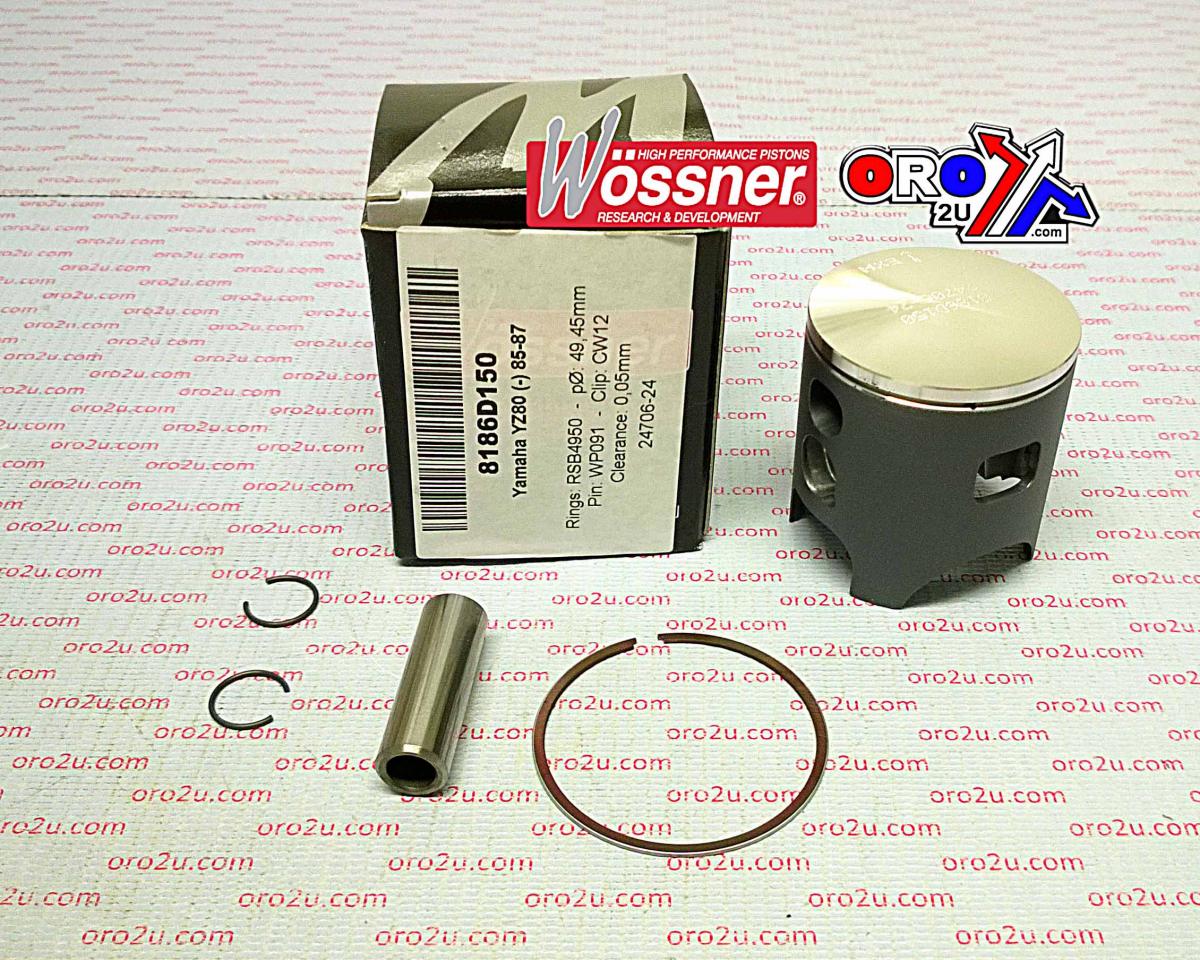

PISTON KIT 85-87 YZ80 49.50, WOSSNER 8186D150 YAMAHA MX

YAMAHA
YZ80 1985 - 1987,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W520+150.WO (phoenixmotos.com)
Wossner Piston Yamaha YZ80 48 mm Bore (PN# 8186D150)
Lock P/N CW12
Pin P/N WP091
Ring Set P/N RSB4950

Display (cm3) 82
Hub stroke (mm) 45.60
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 26.80
Theorectical weight (G)
