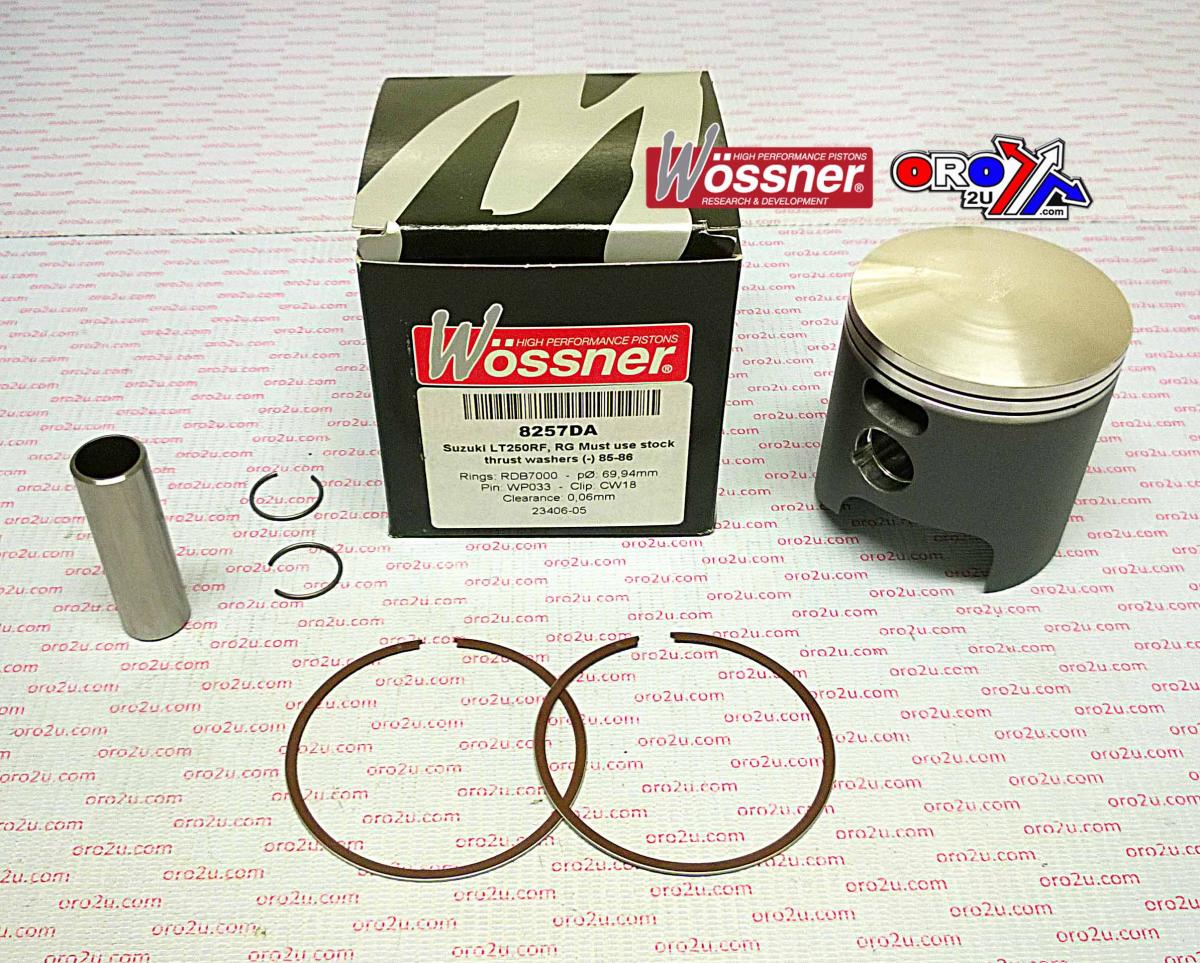

PISTON KIT 85-86 LT250 70.00, WOSSNER 8257DA SUZUKI ATV, MUST USE STOCK THRUST WASHERS

SUZUKI (ATV)
LT250RF 1985 - 1986,
LT250RG 1985 -1986,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W576+0.00.WO (phoenixmotos.com)
Wossner Piston Suzuki LT250RF 70 mm Bore (PN# 8257DA)
Ring Set P/N RSB7000 X 2
Lock P/N CW18
Pin P/N WP033
Rod P/N P2045

Display (cm3) 249
Hub stroke (mm) 64.80
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 33.00
Theorectical weight (G)

1985 Suzuki LT 250 RF

1985 Suzuki LT 250 RG 1986 Suzuki LT 250 RF 1986 Suzuki LT 250 RG
