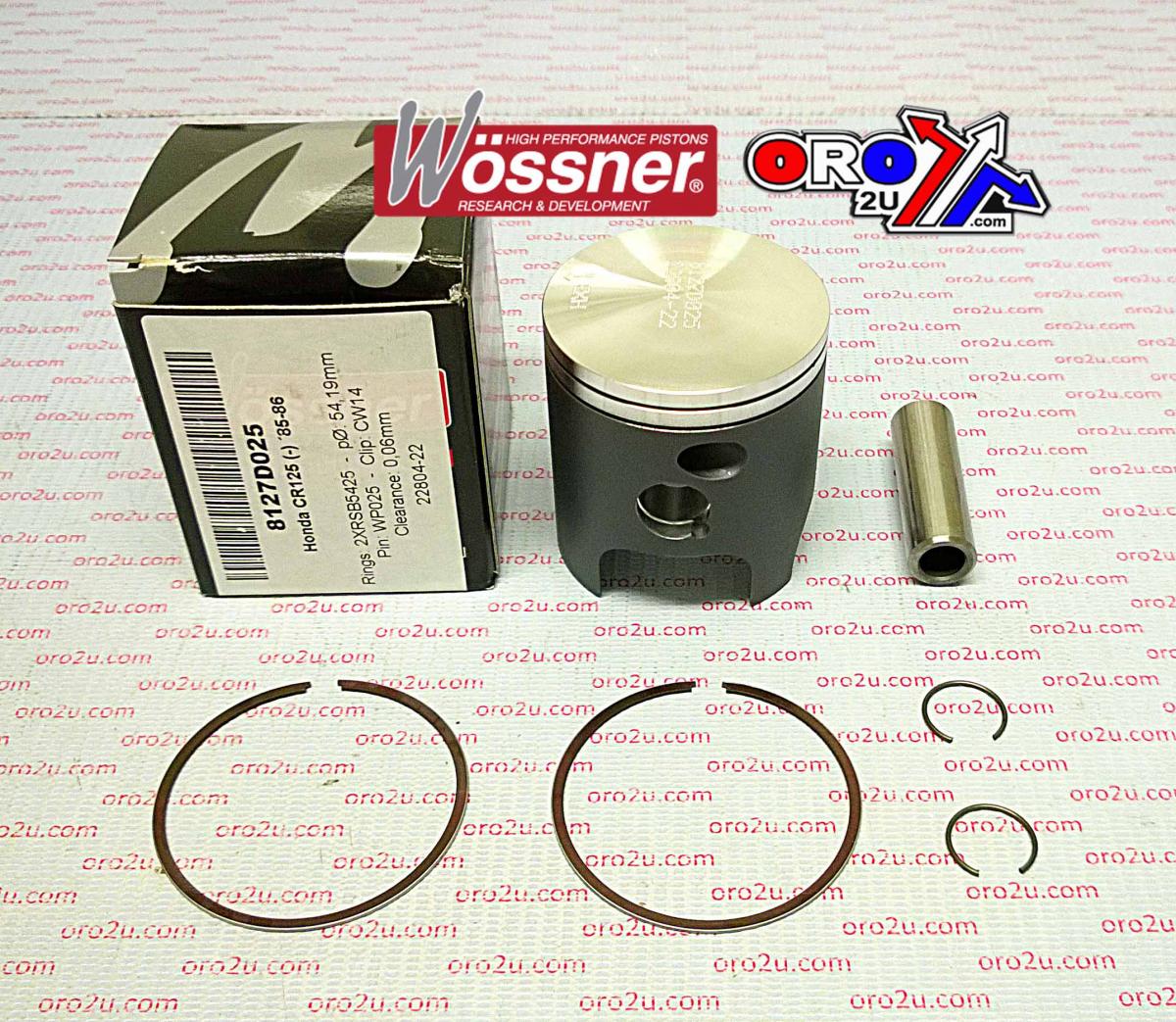

PISTON KIT 85-86 CR125 56.00, WOSSNER 8127D200 HONDA MX

HONDA
CR125 1985 - 1986,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W563+200.WO (phoenixmotos.com)
Wossner Piston Honda CR125 56 mm Bore (PN# 8127D200)
Lock P/N CW14
Pin P/N WP025
Ring Set P/N RSB5600 X 2

Display (cm3) 124
Hub stroke (mm) 54.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)
Hub stroke (mm) 54.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G)
