PISTON KIT 84-86 HONDA ATC CR 250 R 68mm 2.0mm OVER VINTCO PSH09-2.0

This piston kit is designed for 1984-1985 Honda CR250 and 1985-1986 Honda ATC250R models, providing a 68mm piston in 2.0mm oversize for vintage 2-stroke engine rebuilds. It includes the piston, rings, pin and clips, and is manufactured in Germany using modern materials and manufacturing techniques for OEM-style fitment and performance. A wrist pin bearing is available separately, and additional size options are also available.

Features

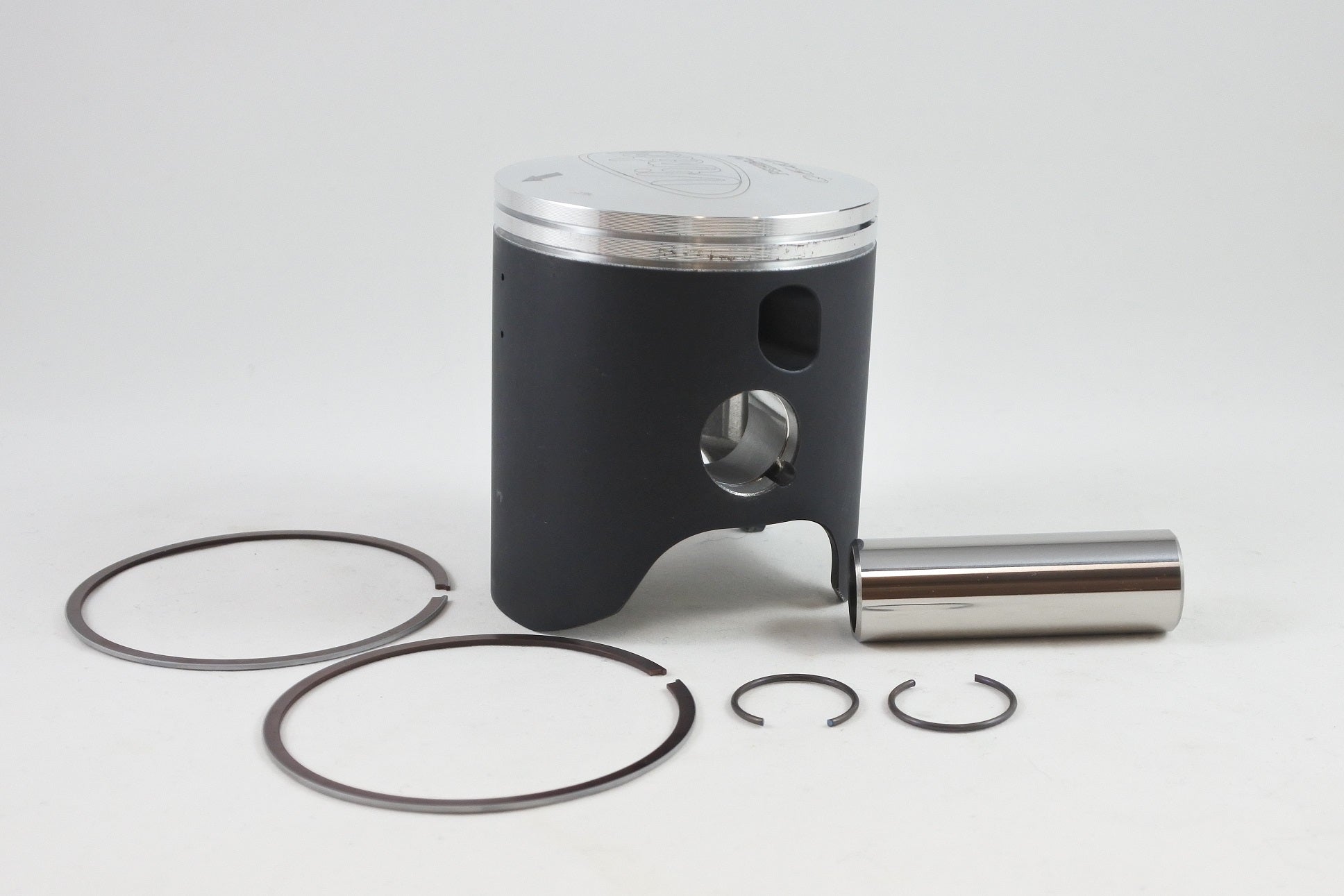

• Complete piston kit with piston, rings, pin and clips
• Suitable for vintage 2-stroke engine rebuilds
• Wrist pin bearing sold separately
• Additional size options available
• Coated to assist with break-in

Specifications

• VintCo Part Number: PSH09-2.0
• Bore size: 68mm
• Oversize: +2.0mm
• Piston type: Forged
• Coating: MoS2
• Piston size: 67.94mm
• Clearance: 0.06mm
• Country of manufacture: Germany

Vehicle Fitments

• 1984 Honda CR250
• 1985 Honda ATC250R
• 1985 Honda CR250
• 1986 Honda ATC250R
