PISTON KIT 84-86 HONDA ATC CR 250 66mm STANDARD VINTCO PSH09-00

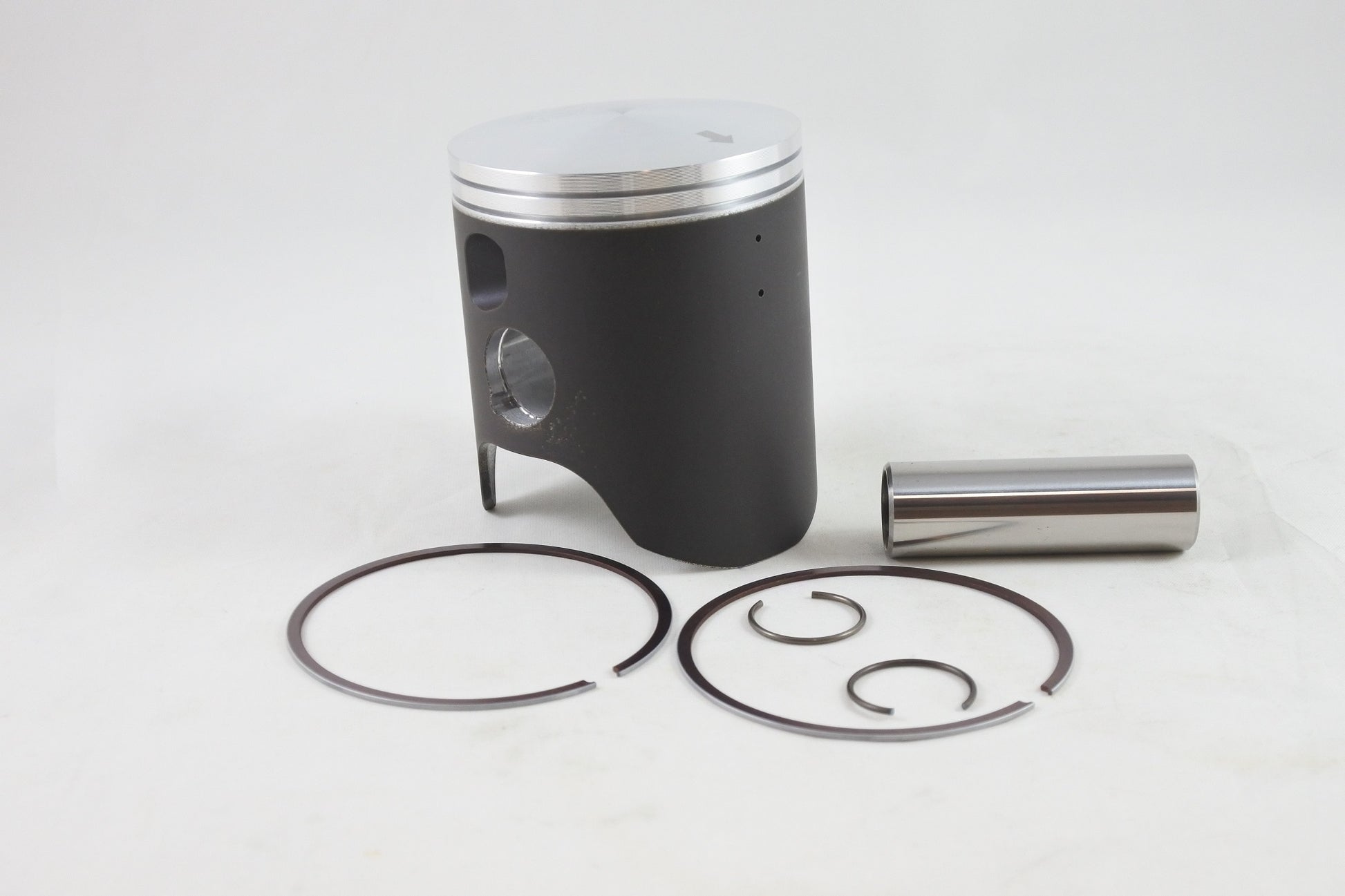

VintCo PSH09-00 is a standard-size 66 mm piston kit for selected 1984-1986 Honda ATC250R and CR250 models. The kit includes the piston, ring(s), pin and clips, with the wrist pin bearing sold separately. It is a forged piston made in Germany and finished with a MoS2 coating for running-in.

Features

• Includes ring(s), pin and clips
• Wrist pin bearing sold separately
• Forged piston
• Made in Germany
• MoS2-coated for running-in

Specifications

• VintCo Part Number: PSH09-00
• Size: Standard
• Nominal piston size: 66 mm
• Piston measurement: 65.94 mm
• Clearance: 0.06 mm

Vehicle Fitments

• 1984 Honda CR250
• 1985 Honda ATC250R
• 1985 Honda CR250
• 1986 Honda ATC250R
