Wiseco Forged Piston Kit 76.00 mm 10.5:1 CR for Honda XR250 R Radial Head 1984–1985 4329M07600

Wiseco 4329M07600 is a piston kit for a 76.00 mm bore.

Wiseco catalogue applications

Specifications

• Manufacturer part number: 4329M07600
• Product Series: 4 Stroke Forged Series
• Bore Diameter: 76.00 MM
• Piston Diameter: 75.95 MM
• Piston Oversize: 1.00 MM
• Piston Material: 2618
• Skirt Coating: No
• Compression Ratio Actual: 10.5:1

Included components

Ring Set #2992XG, Piston pin #S523, Circlip #CW17.

Cylinder preparation

Wiseco specifies: Bore and Hone.

Select by the required finished cylinder bore. Bore diameter and piston diameter are different measurements.

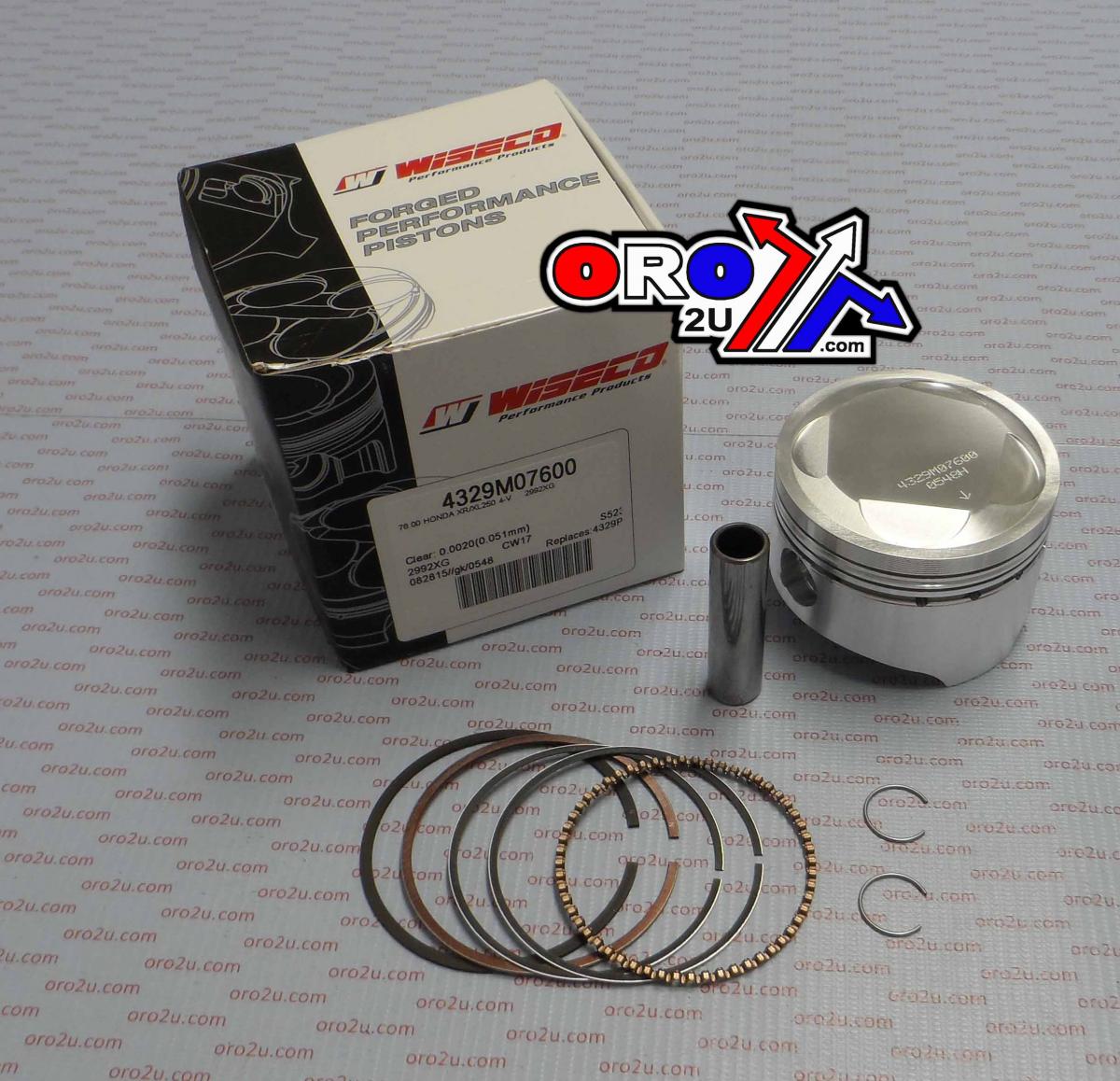

Manufacturer photograph for this reference. Packaging presentation may change.
