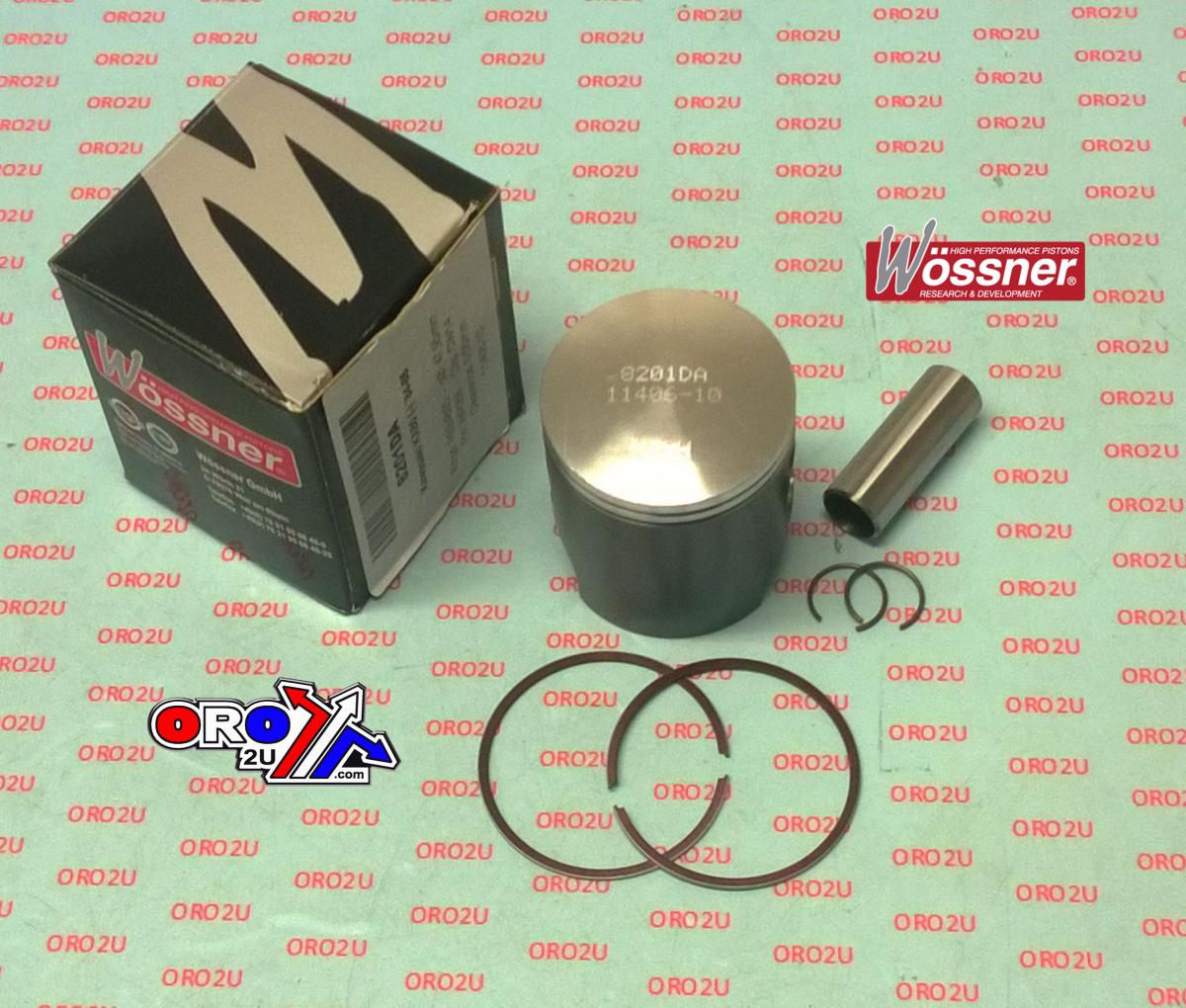

PISTON KIT 84-85 KX80 48.50, WOSSNER 8201D050 KAWASAKI MX

Piston kit 48.50mm Bore 48.45 Wossner 8201D050 (+0.50)

KAWASAKI
KX80 1984 -1985,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W514+050.WO (oro2u.com)
Wossner Piston Kawasaki KX80 48.50 mm Bore (PN# 8201D050)
Lock P/N CW14
Pin P/N WP058
Ring Set P/N RSB4850 X 2
Rod P/N P2036 (1982 - 1997)

Display (cm3) 82
Hub stroke (mm) 45.80
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 26.10
Theorectical weight (G)
