PISTON KIT 84-85 CR250 66.00, WOSSNER 8156DA HONDA MX

HONDA
CR250R 1984 - 1985,
ATAC250 1984 - 1985,

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany

Part No. 56-W526.P0.WO (phoenixmotos.com)

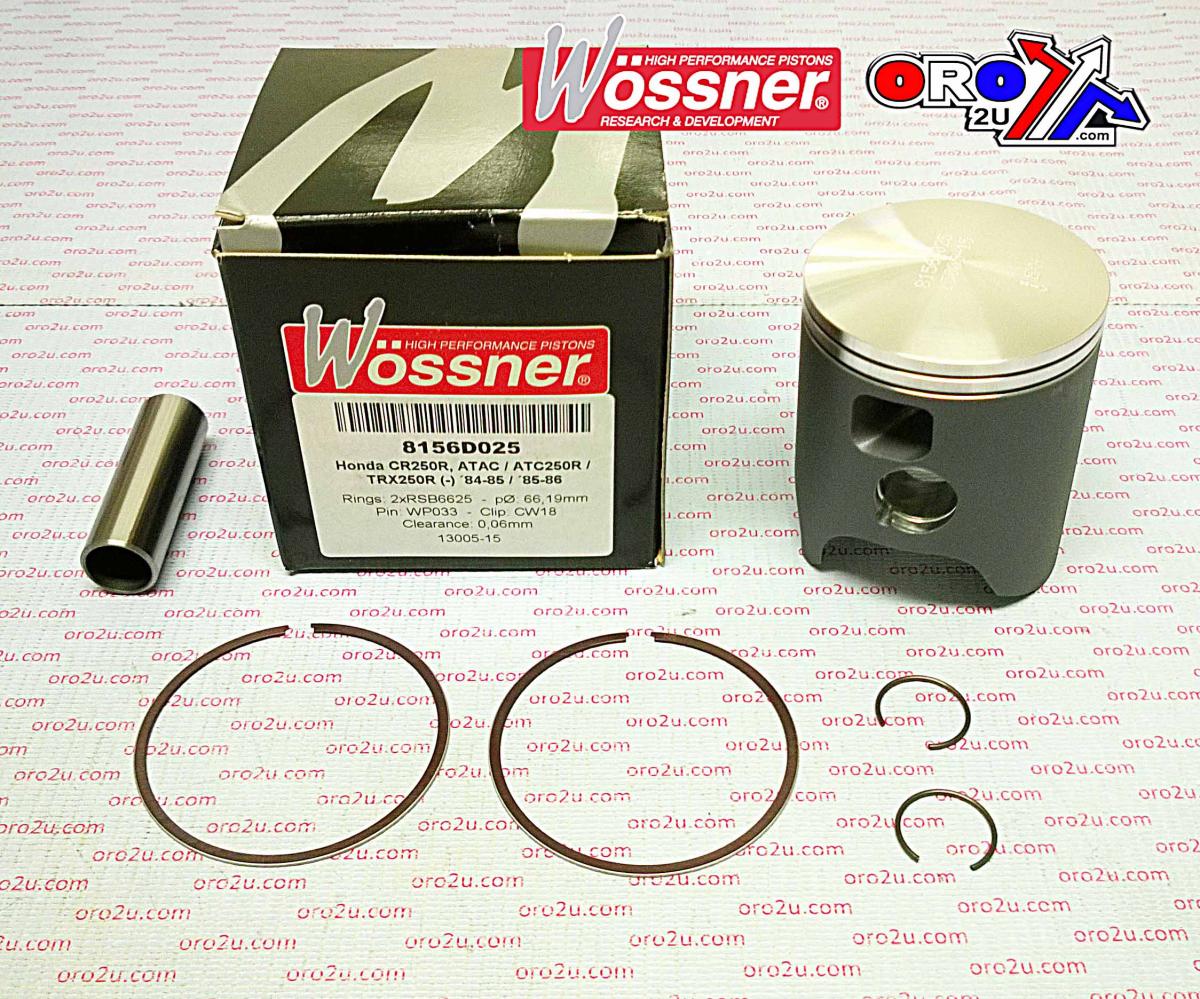

Wossner Piston Honda CR250R 66 mm Bore (PN# 8156DA)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6600 x 2

Display (cm3) 246
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G)

Cross reference numbers ONLY.
13100-KA4-740, 526M06600

1984 Honda CR 250 R 1985 Honda ATC 250R 1985 Honda CR 250 R 1985 Honda TRX 250 R 1986 Honda ATC 250R 1986 Honda TRX 250 R
